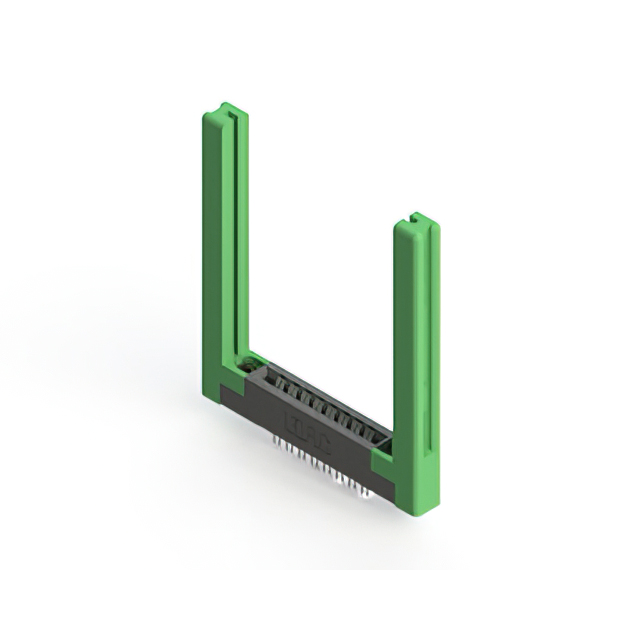

Specification	356-008-400-158

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount
Number of Positions	16, 8
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1 rows

356-008 Series

Part	Color	Termination	Contact Finish	Card Thickness (Min)	Card Thickness (Max)	Gender	Number of Rows	Read Out	Number of Positions	Card Type	Mounting Type	Pitch	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Contact Type	Material - Insulation	Termination Rows	Features
EDAC Inc. 356-008-520-103	Black	Solder	Gold	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Panel Mount Through Hole	0.156 in	Copper Alloy	-40 °C	105 °C	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-521-101	Black	Solder	Gold	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Through Hole	0.156 in	Copper Alloy	-40 °C	105 °C			10 Ąin	Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-520-101	Black	Solder	Gold	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Through Hole	0.156 in	Copper Alloy	-40 °C	105 °C			10 Ąin	Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-420-108	Black	Solder	Tin	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Panel Mount Through Hole	0.156 in	Copper Alloy	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-500-107	Black	Solder Eyelet(s)	Gold	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Panel Mount	0.156 in	Copper Alloy	-40 °C	105 °C		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-400-103	Black	Solder Eyelet(s)	Tin	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Panel Mount	0.156 in	Copper Alloy	-40 °C	105 °C	0.116 in	Floating Bobbin Flush Mount		Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-500-103	Black	Solder Eyelet(s)	Gold	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Panel Mount	0.156 in	Copper Alloy	-40 °C	105 °C	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-500-101	Black	Solder Eyelet(s)	Gold	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Free Hanging (In-Line)	0.156 in	Copper Alloy	-40 °C	105 °C			10 Ąin	Cantilever	Polyester Thermoplastic	1 rows
EDAC Inc. 356-008-520-178	Black	Solder	Gold	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Panel Mount Through Hole	0.156 in	Copper Alloy	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Cantilever	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 356-008-400-178	Black	Solder Eyelet(s)	Tin	0.054 in	0.07 in	Female	2	Dual	8 16	Dual Edge Non Specified	Panel Mount	0.156 in	Copper Alloy	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Polyester Thermoplastic	1 rows	Card Guides
