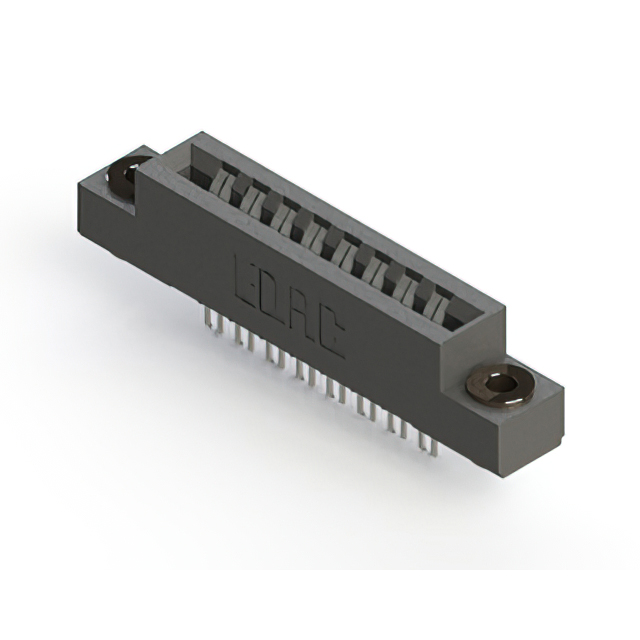

356-008-400-103
ActiveEDAC Inc.
3.96MM PANEL MOUNTING 16P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-008-400-103
ActiveEDAC Inc.
3.96MM PANEL MOUNTING 16P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-008-400-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
356-008 Series
| Part | Color | Termination | Mounting Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Termination Rows | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Card Type | Contact Material | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | Solder | Panel Mount Through Hole | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | 1 | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | |
EDAC Inc. | Black | Solder | Through Hole | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | 1 | Female | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | ||||
EDAC Inc. | Black | Solder | Through Hole | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | 1 | Female | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | ||||
EDAC Inc. | Black | Solder Eyelet(s) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | 1 | Female | Flush Mount M3 Threaded Insert Top Opening | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | ||||
EDAC Inc. | Black | Solder Eyelet(s) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Tin | 1 | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | ||||
EDAC Inc. | Black | Solder Eyelet(s) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | 1 | Female | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | ||
EDAC Inc. | Black | Solder Eyelet(s) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | 1 | Female | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | ||||
EDAC Inc. | Black | Solder Eyelet(s) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Tin | 1 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Card Guides | |||||
EDAC Inc. | Black | Solder | Panel Mount Through Hole | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 10 Áin | 0.25 Ám | 2 | Gold | 1 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Card Guides | ||
EDAC Inc. | Black | Solder Eyelet(s) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Tin | 1 | Female | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 8 | 8 | 8 | 16 | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-008 Series
16 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
