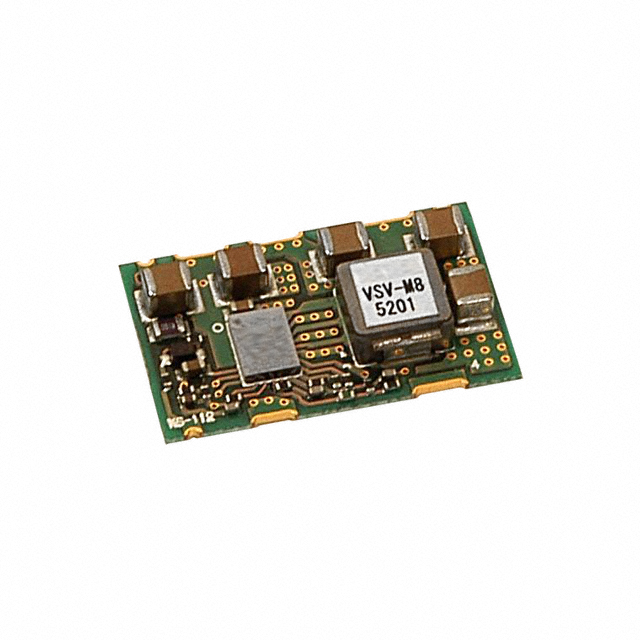

VSV-3.3S8ROM
ObsoleteVolgen + Furuno
DC DC CONVERTER 3.3V 25W
VSV-3.3S8ROM
ObsoleteVolgen + Furuno
DC DC CONVERTER 3.3V 25W
Description
General part information
VSV-3.3 Series
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 8A 3V - 5.5V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VSV-3.3S8ROM |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 8 A |
| Efficiency | 96 % |
| Features | OCP, Remote On/Off, OTP, UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8-SMD Module |
| Power (Watts) | 25 W |
| Size / Dimension Height | 0.16 in |
| Size / Dimension Length | 0.94 in |
| Size / Dimension Width | 0.59 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 3 V |
| Voltage - Output 1 | 3.3 V |
