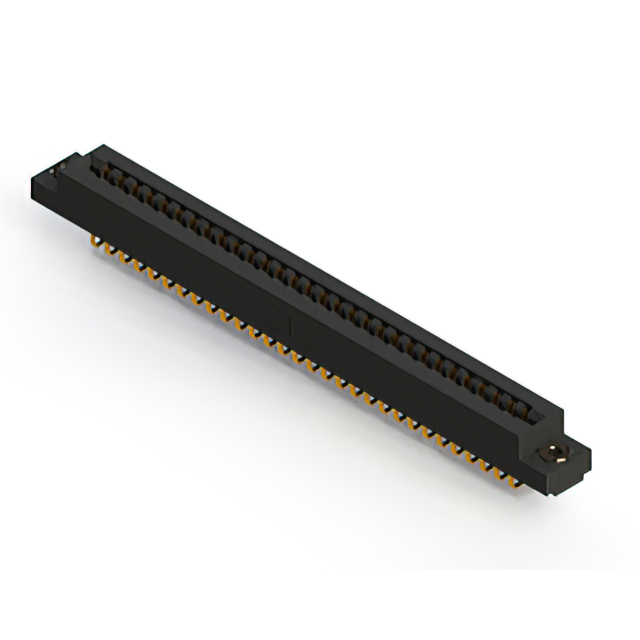

357-060-559-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-060-559-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-060-559-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
357-060 Series
...
| Part | Mounting Type | Flange Feature | Contact Finish | Material - Insulation | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Termination Rows | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Termination | Number of Rows | Contact Material | Features | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Wire Wrap | 2 | Copper Alloy | Card Guides | Female | ||
EDAC Inc. | Through Hole Right Angle | Flush Mount M3 Threaded Insert Top Opening | Gold | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder Wire Wrap | 2 | Copper Alloy | Female | |||
EDAC Inc. | Through Hole Right Angle | Floating Bobbin Flush Mount | Gold | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder | 2 | Copper Alloy | Female | 0.116 in | 2.95 mm | |
EDAC Inc. | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Tin | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder | 2 | Copper Alloy | Female | |||||
EDAC Inc. | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder | 2 | Copper Alloy | Card Guides | Female | ||
EDAC Inc. | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Tin | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder Eyelet(s) | 2 | Copper Alloy | Card Guides | Female | ||||
EDAC Inc. | Board Edge Straddle Mount | Floating Bobbin Flush Mount | Tin | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder | 2 | Copper Alloy | Female | 0.116 in | 2.95 mm | |||
EDAC Inc. | Through Hole | Flush Mount Top Opening Unthreaded | Gold | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Wire Wrap | 2 | Copper Alloy | Female | 0.128 " | 3.25 mm | |
EDAC Inc. | Through Hole Right Angle | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder | 2 | Copper Alloy | Card Guides | Female | ||
EDAC Inc. | Board Edge Straddle Mount | Floating Bobbin Flush Mount | Gold | Polyester Thermoplastic | 0.156 in | 3.96 mm | 30 | 10 Áin | 0.25 Ám | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | Black | -40 °C | 105 ░C | Semi Bellows | Solder | 2 | Copper Alloy | Card Extender | Female | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 18.54 | |
Description
General part information
357-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
