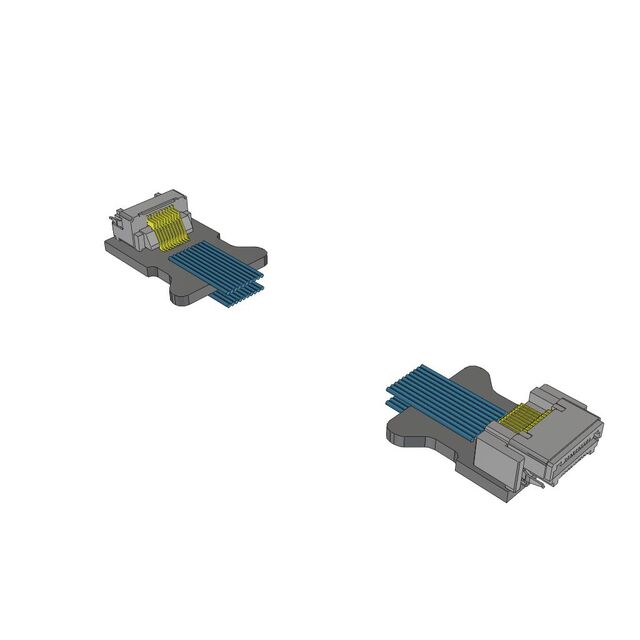

HLCD-10-02.00-TD-TH-1

Active

Samtec Inc.

CBL ASSM HDR SELF-MATE 20POS 2"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HLCD Drawing

HLCD-10-02.00-TD-TH-1

Active

Samtec Inc.

CBL ASSM HDR SELF-MATE 20POS 2"

Deep-Dive with AI

DocumentsDatasheet HLCD Drawing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLCD-10-02.00-TD-TH-1

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Hermaphroditic to Self Mating, Reversed, Hermaphroditic, Self Mating, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Length	50.8 mm
Length	2 "
Length	0.167 '
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.01 in
Pitch - Cable	0.25 mm
Pitch - Connector	0.02 in
Pitch - Connector	0.5 mm
Shielding	Shielded

HLCD-10 Series

Part	Shielding	Color	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Contact Finish	Cable Termination	Number of Positions	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Connector Type	Length	Length	Length	Length
Samtec Inc. HLCD-10-18.00-TD-TH-1	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20	457.2 mm	1.5 ft	0.02 in	0.5 mm	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating
Samtec Inc. HLCD-10-02.00-TR-TR-1	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20			0.02 in	0.5 mm	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	50.8 mm	2 "	0.167 '
Samtec Inc. HLCD-10-06.00-TD-TH-1	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20			0.02 in	0.5 mm	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	152.4 mm	6 "		0.5 '
Samtec Inc. HLCD-10-06.00-TD-TH-2	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20			0.02 in	0.5 mm	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	152.4 mm	6 "		0.5 '
Samtec Inc. HLCD-10-02.00-TD-TH-1	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20			0.02 in	0.5 mm	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	50.8 mm	2 "	0.167 '
Samtec Inc. HLCD-10-40.00-TR-TR-1	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20	1.02 m	3.33 '	0.02 in	0.5 mm	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic
Samtec Inc. HLCD-10-12.00-TD-TH-2	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20			0.02 in	0.5 mm	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	304.8 mm		1 ft
Samtec Inc. HLCD-10-40.00-TD-TH-2	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20	1.02 m	3.33 '	0.02 in	0.5 mm	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating
Samtec Inc. HLCD-10-06.00-TR-TR-1	Shielded	Blue Ribbon	2	10 Áin	0.25 Ám	0.01 in	0.25 mm	Gold	IDC	20			0.02 in	0.5 mm	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	152.4 mm	6 "		0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.41
		10	$ 42.05

Description

General part information

HLCD-10 Series

20 Position Cable Assembly Rectangular Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic, Reversed 0.167' (50.80mm, 2.00")
