130C-1X15FT

Active

TAPE ELECTRICAL BLACK 1"X5YDS

Search across all available documentation for this part.

Active

TAPE ELECTRICAL BLACK 1"X5YDS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	130C-1X15FT	130 Series

Adhesive	Rubber, Self Fusing	Rubber, Self Fusing, Rubber
Backing, Carrier	Rubber	Rubber, Ethylene Propylene Rubber
Color	Black	Black
Length	4.6 m	3 - 4.6 m
Length	15 ft	10 - 15 ft
Length	5 yd	3.3 - 5 yd
Length	-	30 ft
Length	-	9.1 m
Length	-	10 yds
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	-	27 °C
Storage/Refrigeration Temperature	-	10 °C
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 81 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	Electrical	Electrical, Splicing
Temperature Range	90 °C	90 °C
Temperature Range	194 °F	194 °F
Thickness	0.03 in	0.03 in
Thickness	0.762 mm	0.762 mm
Thickness	0.762 mm	0.762 mm
Usage	Electrically Insulating	Electrically Insulating
Width [x]	25.4 mm	25.4 mm
Width [x]	1 in	1 in

TAPES ELECTRICAL TAPE RUBBER CABLES/WIRES 250PSI BLACK 700V/MIL ETHYLENE RUBBER 9.1M

Part	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length [x]	Length [x]	Length [x]	Tape Type	Shelf Life	Backing, Carrier	Width [x]	Width [x]	Color	Adhesive	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Shelf Life Start	Usage	Length	Length	Length	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]
3M 130C-1X30FT	27 °C, 80 °F	10 °C	30 ft	9.1 m	10 yds	Electrical	60 Months	Rubber	25.4 mm	1 in	Black	Rubber, Self Fusing	90 °C	194 °F	0.03 in	0.762 mm	0.762 mm	Date of Manufacture	Electrically Insulating
3M 130C-1X15FT	27 °C, 80 °F	10 °C				Electrical	60 Months	Rubber	25.4 mm	1 in	Black	Rubber, Self Fusing	90 °C	194 °F	0.03 in	0.762 mm	0.762 mm	Date of Manufacture	Electrically Insulating	4.6 m	15 ft	5 yd
3M 130-1X10FT	81 °F	10 °C				Splicing	60 Months	Ethylene Propylene Rubber	25.4 mm	1 in	Black	Rubber	90 °C	194 °F	0.03 in	0.762 mm	0.762 mm	Date of Manufacture		3 m	10 ft	3.3 yds	27 °C	10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

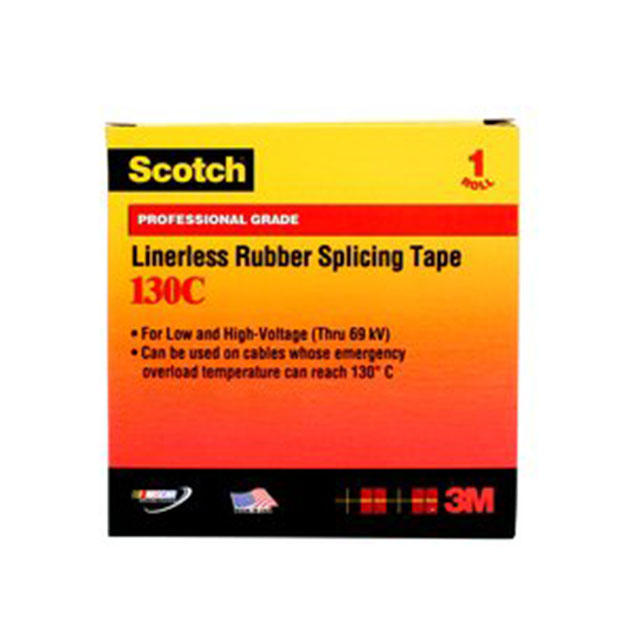

Electrical Tape Rubber, Self Fusing Adhesive Black 1.00" (25.40mm) X 15' (4.6m) 5 yds
