130-1X10FT

Active

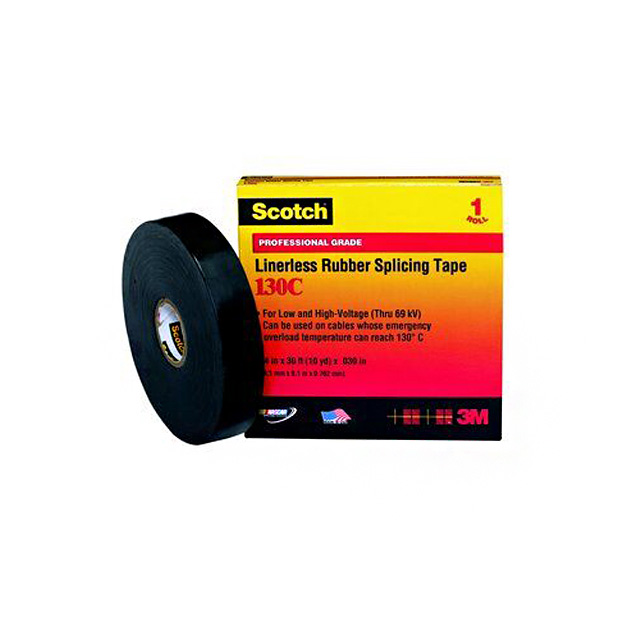

LINERLESS RUBBER TAPE 1" X 10

Search across all available documentation for this part.

Active

LINERLESS RUBBER TAPE 1" X 10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Splicing Tape Rubber Adhesive Black 1.00" (25.40mm) X 10' (3.0m) 3.3 yds

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	130-1X10FT	130 Series

Adhesive	Rubber	Rubber, Self Fusing, Rubber
Backing, Carrier	Ethylene Propylene Rubber	Rubber, Ethylene Propylene Rubber
Color	Black	Black
Length	10 ft	10 - 15 ft
Length	3.3 yds	3.3 - 5 yd
Length	3 m	3 - 4.6 m
Length	-	30 ft
Length	-	9.1 m
Length	-	10 yds
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	27 °C	27 °C
Storage/Refrigeration Temperature [Max]	81 °F	27 - 81 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	Splicing	Electrical, Splicing
Temperature Range	90 °C	90 °C
Temperature Range	194 °F	194 °F
Thickness	0.03 in	0.03 in
Thickness	0.762 mm	0.762 mm
Thickness	0.762 mm	0.762 mm
Usage	-	Electrically Insulating
Width [x]	25.4 mm	25.4 mm
Width [x]	1 in	1 in

TAPES ELECTRICAL TAPE RUBBER CABLES/WIRES 250PSI BLACK 700V/MIL ETHYLENE RUBBER 9.1M

Part	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length [x]	Length [x]	Length [x]	Tape Type	Shelf Life	Backing, Carrier	Width [x]	Width [x]	Color	Adhesive	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Shelf Life Start	Usage	Length	Length	Length	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]
3M 130C-1X30FT	27 °C, 80 °F	10 °C	30 ft	9.1 m	10 yds	Electrical	60 Months	Rubber	25.4 mm	1 in	Black	Rubber, Self Fusing	90 °C	194 °F	0.03 in	0.762 mm	0.762 mm	Date of Manufacture	Electrically Insulating
3M 130C-1X15FT	27 °C, 80 °F	10 °C				Electrical	60 Months	Rubber	25.4 mm	1 in	Black	Rubber, Self Fusing	90 °C	194 °F	0.03 in	0.762 mm	0.762 mm	Date of Manufacture	Electrically Insulating	4.6 m	15 ft	5 yd
3M 130-1X10FT	81 °F	10 °C				Splicing	60 Months	Ethylene Propylene Rubber	25.4 mm	1 in	Black	Rubber	90 °C	194 °F	0.03 in	0.762 mm	0.762 mm	Date of Manufacture		3 m	10 ft	3.3 yds	27 °C	10 °C
