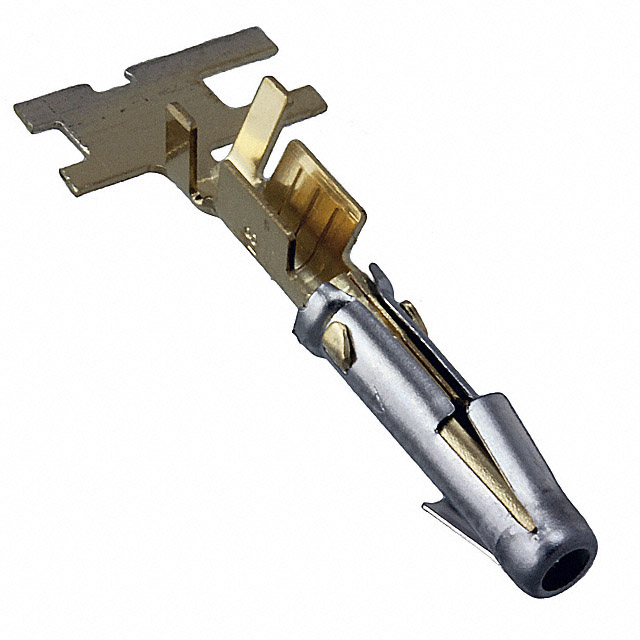

SS16M1F

Obsolete

Amphenol Sine Systems Corp

CONTACT SOCKET 16-18AWG CRIMP

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CONTACT SOCKET 16-18AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Size	Contact Termination	Features	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Type	Contact Material	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Finish Thickness	Termination Finish
Amphenol Sine Systems Corp SS16M2G10	Gold	10 Áin	0.25 Ám	Socket	16	Crimp	Insulation Support	16 AWG	18 AWG	1.5 mm˛	0.75 mm˛	Signal Stamped	Copper Alloy
Amphenol Sine Systems Corp SS16M2N	Nickel			Socket	16	Crimp	Insulation Support	16 AWG	18 AWG			Signal Stamped	Copper Alloy	1.5 mm²	0.75 mm²
Amphenol Sine Systems Corp SS16M1T	Tin			Socket	16	Crimp	Insulation Support	16 AWG	18 AWG			Signal Stamped	Copper Alloy	1.5 mm²	0.75 mm²
Amphenol Sine Systems Corp SS16M2F	Gold			Socket	16	Crimp	Insulation Support	16 AWG	18 AWG			Signal Stamped	Copper Alloy	1.5 mm²	0.75 mm²	Flash
Amphenol Sine Systems Corp SS16M1F	Gold			Socket	16	Crimp	Insulation Support	16 AWG	18 AWG			Signal Stamped	Copper Alloy	1.5 mm²	0.75 mm²	Flash	Copper Alloy
Amphenol Sine Systems Corp SS16M2G30	Gold	30 Áin	0.76 Ám	Socket	16	Crimp	Insulation Support	16 AWG	18 AWG			Signal Stamped	Copper Alloy	1.5 mm²	0.75 mm²
Amphenol Sine Systems Corp SS16M1G10	Gold	10 Áin	0.25 Ám	Socket	16	Crimp	Insulation Support	16 AWG	18 AWG			Signal Stamped	Copper Alloy	1.5 mm²	0.75 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Socket Contact 16-18 AWG Size 16 Crimp Gold
