395-051-525-408
ActiveEDAC Inc.

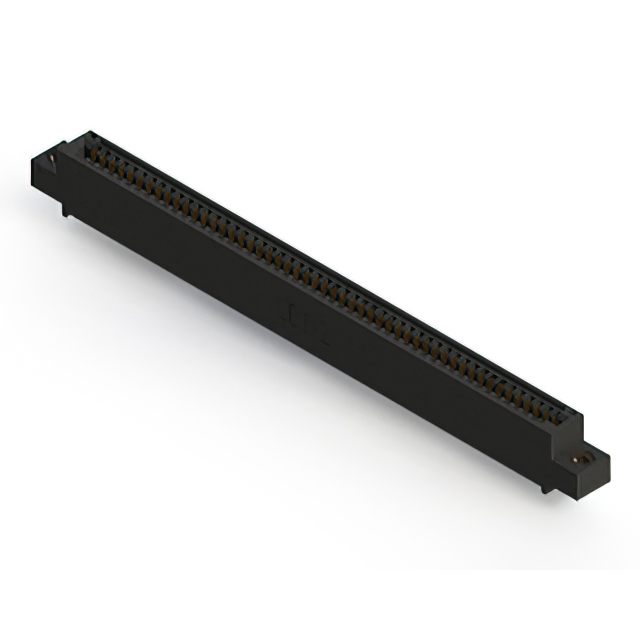

CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-051-525-408
ActiveEDAC Inc.
CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-051-525-408 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 51 |
| Number of Positions/Bay/Row [custom] | 51 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-051 Series
...
| Part | Termination Rows | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Card Type | Pitch [x] | Pitch [x] | Flange Feature | Number of Rows | Gender | Mounting Type | Color | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Features | Contact Finish | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Card Guides | Gold | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | 51 | ||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Card Guides | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | ||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | |||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | |||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | |||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | |||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | ||||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Flush Mount Side Opening Unthreaded | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | 3.25 mm | 0.128 " | |
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Card Guides | Gold | Solder | Cantilever | 10 Áin | 0.25 Ám | 51 | ||
EDAC Inc. | 1 | 51 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Through Hole | Black | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Card Guides | Gold | Wire Wrap | Cantilever | 10 Áin | 0.25 Ám | 51 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 16.24 | |
Description
General part information
395-051 Series
51 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
