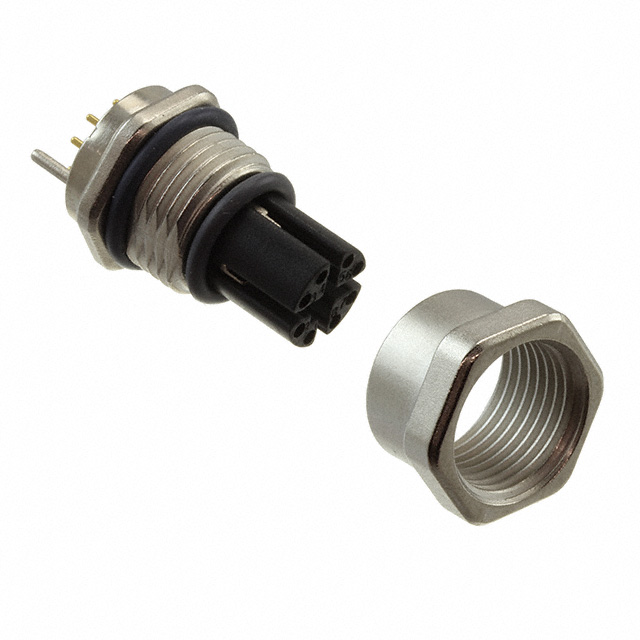

MSXS-08PFFP-SF7001
ActiveAmphenol LTW
CONN RCPT FMALE 8POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSXS-08PFFP-SF7001
ActiveAmphenol LTW
CONN RCPT FMALE 8POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSXS-08PFFP-SF7001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Ground |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 50 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.57 | |
| 10 | $ 10.41 | |||
| 30 | $ 9.81 | |||
| 50 | $ 9.56 | |||
| 100 | $ 9.31 | |||
| 250 | $ 8.30 | |||
| 500 | $ 7.80 | |||
| 1000 | $ 6.89 | |||
Description
General part information
MSXS-08PFFP Series
8 Position Circular Connector Receptacle, Female Sockets Solder
