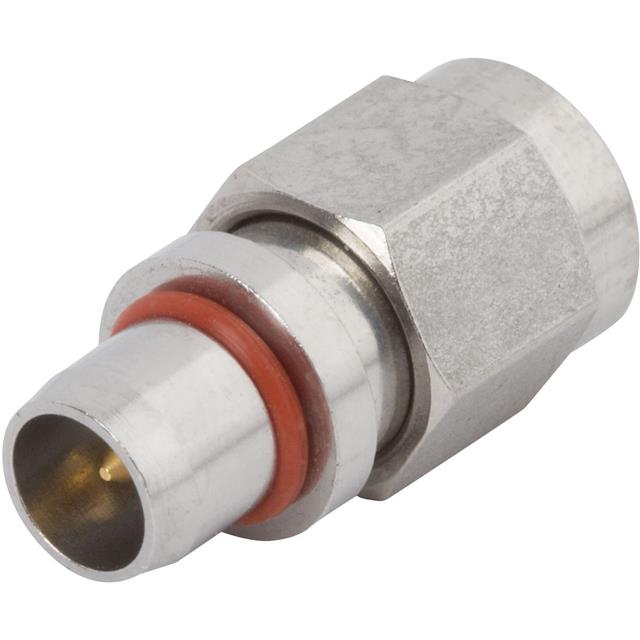

SF1117-6018

Active

Amphenol SV Microwave

BMA MALE TO SMA MALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

BMA MALE TO SMA MALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF1117-6018

Adapter Series	SMA to BMA
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	BMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	22 GHz
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Fastening Type	Center Contact Material	Mounting Type	Dielectric Material	Adapter Series	Frequency - Max [Max]	Impedance	Conversion Type	Body Material	Mating Cycles	Convert To (Adapter End)	Center Gender	Style	Convert From (Adapter End)	Center Contact Plating	Adapter Type
Amphenol SV Microwave SF1117-6018	Snap-On Threaded	Beryllium Copper	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	SMA to BMA	22 GHz	50 Ohms	Between Series	Stainless Steel	5000	BMA Plug Male Pin	Male to Male	Straight	SMA Plug Male Pin	Gold	Plug to Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To BMA Plug, Male Pin 50 Ohms
