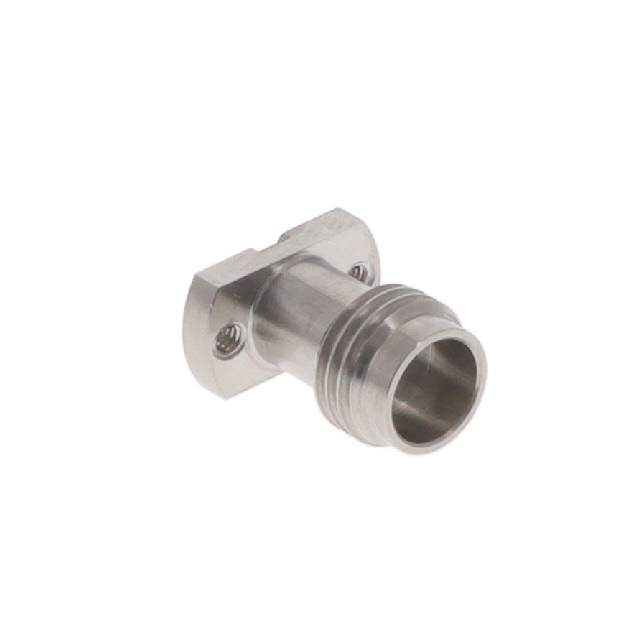

Specification	08K722-40MS3

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Plug Diameter	1.85 mm
Connector Type	Jack, Female Socket
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	70 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	0 °C
Shield Termination	Screw
Voltage Rating	150 VDC

08K722 Series

Part	Mounting Feature	Frequency - Max	Connector Plug Diameter	Fastening Type	Connector Type	Housing Color	Contact Termination	Number of Ports	Impedance	Mounting Type	Center Contact Material	Shield Termination	Voltage Rating	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Mating Cycles	Body Material
Rosenberger 08K722-40MS3	Flange	70 GHz	1.85 mm	Threaded	Female Socket Jack	Silver	Compression	1	50 Ohm	Panel Mount	Beryllium Copper	Screw	150 VDC	Gold	85 °C	0 °C	Polytetrafluoroethylene (PTFE)	500 cycles	Stainless Steel
