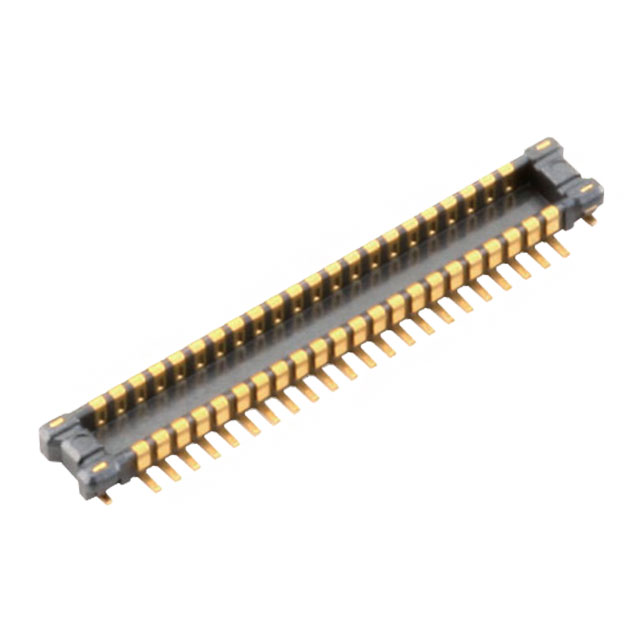

AXF6A4412

Active

Panasonic Electric Works

CONN HDR 44POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 44POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF6A4412

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	44
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish	Features	Number of Positions	Mounting Type	Number of Rows	Connector Type	Pitch [x]	Pitch [x]
Panasonic Electric Works AXF6A4012	0.8 mm	0.026 in	0.65 mm	Gold	Solder Retention	40	Surface Mount	2	Header Outer Shroud Contacts	0.35 mm	0.014 in
Panasonic Electric Works AXF6A4412	0.8 mm	0.026 in	0.65 mm	Gold	Solder Retention	44	Surface Mount	2	Header Outer Shroud Contacts	0.35 mm	0.014 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.02

General part information

44 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
