SE2L-H05LPC

Active

IDEC Corporation

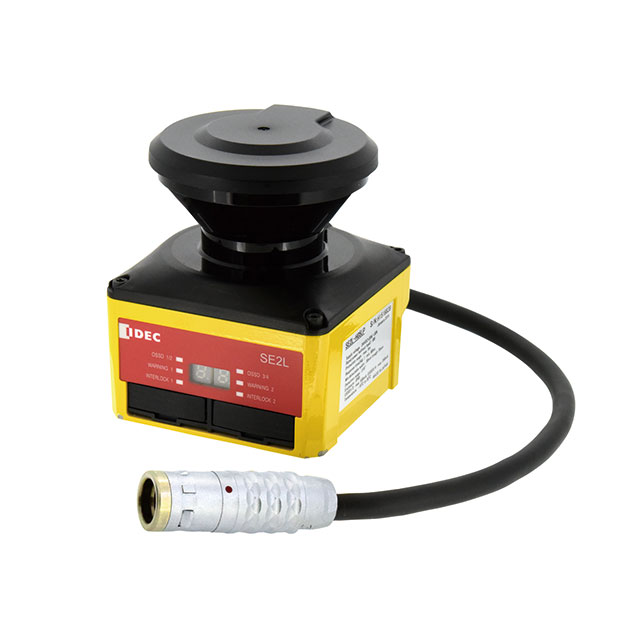

SAFETY LASER SCANNER, SE2L SERIES, 270°, 5 M PROTECTION ZONE, CONNECTOR MODEL

Search across all available documentation for this part.

Active

IDEC Corporation

SAFETY LASER SCANNER, SE2L SERIES, 270°, 5 M PROTECTION ZONE, CONNECTOR MODEL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SE2L-H05LPC	SE2L Series

Approval Agency	CE, TUV, cULus	CE, TUV, cULus
Detection Capability	30 mm, 70 mm, 150 mm, 50 mm	30 - 150 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Number of Monitor Fields	32	32
Number of Outputs and Type [custom]	2	2
Number of Outputs and Type [custom]	2	2
Number of Outputs and Type [custom]	2	2
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Protection Range	5 m	5 m
Response Time	60 ms	60 ms
Safety Category	SIL2	SIL2
Sensing Angle	270 °	270 °

SAFETY LASER SCANNER, SE2L SERIES, 270°, 5 M PROTECTION ZONE, CONNECTOR MODEL

Part	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Detection Capability	Ingress Protection	Safety Category	Sensing Angle	Approval Agency	Number of Monitor Fields	Response Time	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Protection Range
IDEC Corporation SE2L-H05LPC	2	2	2	30 mm, 50 mm, 70 mm, 150 mm	IP65 - Dust Tight, Water Resistant	SIL2	270 °	CE, cULus, TUV	32	60 ms	-10 °C	50 °C	5 m
IDEC Corporation SE2L-H05LP	2	2	2	30 mm, 50 mm, 70 mm, 150 mm	IP65 - Dust Tight, Water Resistant	SIL2	270 °	CE, cULus, TUV	32	60 ms	-10 °C	50 °C	5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Safety Laser Scanner 5m 270°
