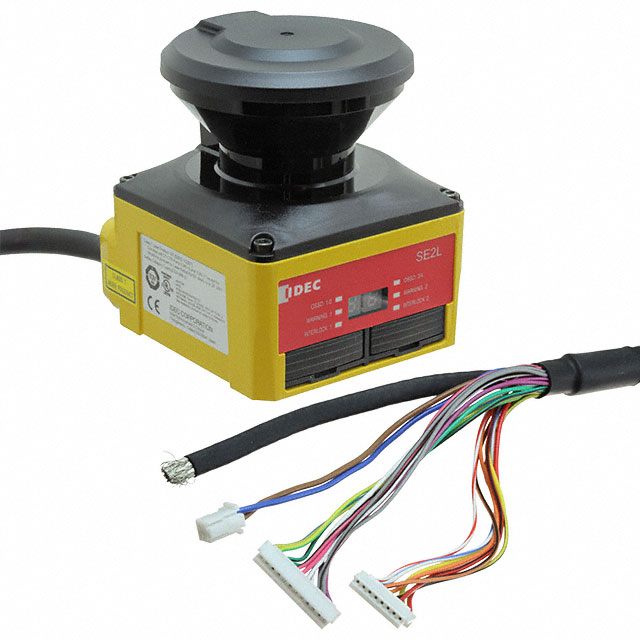

SE2L-H05LP

Active

IDEC Corporation

SAFETY LASER SCANNER, 0.5A, 24VDC

Search across all available documentation for this part.

Active

IDEC Corporation

SAFETY LASER SCANNER, 0.5A, 24VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SE2L-H05LP	SE2L Series

Approval Agency	CE, TUV, cULus	CE, TUV, cULus
Detection Capability	30 mm, 70 mm, 150 mm, 50 mm	30 - 150 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Number of Monitor Fields	32	32
Number of Outputs and Type [custom]	2	2
Number of Outputs and Type [custom]	2	2
Number of Outputs and Type [custom]	2	2
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Protection Range	5 m	5 m
Response Time	60 ms	60 ms
Safety Category	SIL2	SIL2
Sensing Angle	270 °	270 °

SAFETY LASER SCANNER, SE2L SERIES, 270°, 5 M PROTECTION ZONE, CONNECTOR MODEL

Part	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Detection Capability	Ingress Protection	Safety Category	Sensing Angle	Approval Agency	Number of Monitor Fields	Response Time	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Protection Range
IDEC Corporation SE2L-H05LPC	2	2	2	30 mm, 50 mm, 70 mm, 150 mm	IP65 - Dust Tight, Water Resistant	SIL2	270 °	CE, cULus, TUV	32	60 ms	-10 °C	50 °C	5 m
IDEC Corporation SE2L-H05LP	2	2	2	30 mm, 50 mm, 70 mm, 150 mm	IP65 - Dust Tight, Water Resistant	SIL2	270 °	CE, cULus, TUV	32	60 ms	-10 °C	50 °C	5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2800.95
Newark	Each	1	$ 3118.27
		5	$ 3024.73

General part information

Safety Laser Scanner 5m 270°
