AZ47049

Obsolete

Panasonic Industrial Automation Sales

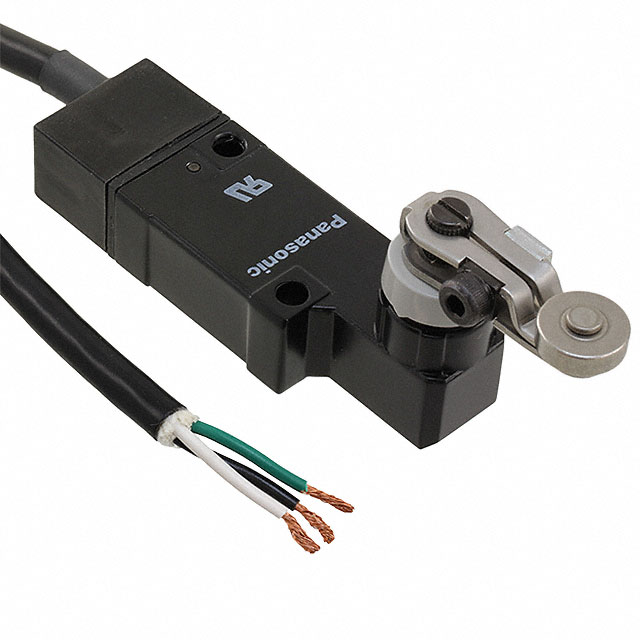

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	AZ47049

Actuator Type	Side Rotary, Roller
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	3 °
Electrical Life	300000 Cycles
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	450 gf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Pretravel	15 °
Release Force	25 gf
Switch Function	On-Mom
Termination Style	Cable Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Release Force	Electrical Life	Termination Style	Circuit	Actuator Type	Differential Travel	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Pretravel	Mechanical Life	Operating Force	Ingress Protection	Switch Function	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Panasonic Industrial Automation Sales AZ47049	25 gf	300000 Cycles	Cable Leads	SPDT	Roller Side Rotary	3 °	30 V	125 V	5 A	15 °	10000000 Cycles	450 gf	IP64 - Dust Tight Water Resistant	On-Mom	Chassis Mount	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
