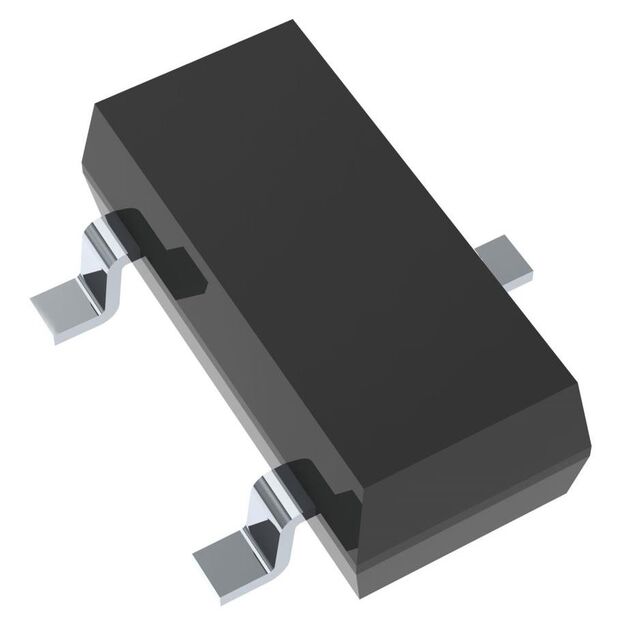

FMMT593QTA

Active

Diodes Inc

BIPOLAR (BJT) SINGLE TRANSISTOR, PNP, 100 V, 1 A, 500 MW, SOT-23, SURFACE MOUNT

Search across all available documentation for this part.

Active

Diodes Inc

BIPOLAR (BJT) SINGLE TRANSISTOR, PNP, 100 V, 1 A, 500 MW, SOT-23, SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FMMT593QTA

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	50 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	500 mW
Supplier Device Package	SOT-23 (Type DN)
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

PNP, 100V, 1A, SOT23

Part	Package / Case	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Transistor Type
Diodes Inc FMMT593TC	SC-59 SOT-23-3 TO-236-3	SOT-23-3	100 nA	100	500 mW	-55 °C	150 °C	50 MHz	100 V	1 A	Surface Mount	300 mV	PNP
Diodes Inc FMMT593TA	SC-59 SOT-23-3 TO-236-3	SOT-23-3	100 nA	100	500 mW	-55 °C	150 °C	50 MHz	100 V	1 A	Surface Mount	300 mV	PNP
Diodes Inc FMMT593QTA	SC-59 SOT-23-3 TO-236-3	SOT-23 (Type DN)	100 nA	100	500 mW	-55 °C	150 °C	50 MHz	100 V	1 A	Surface Mount	300 mV	PNP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PNP, 100V, 1A, SOT23
