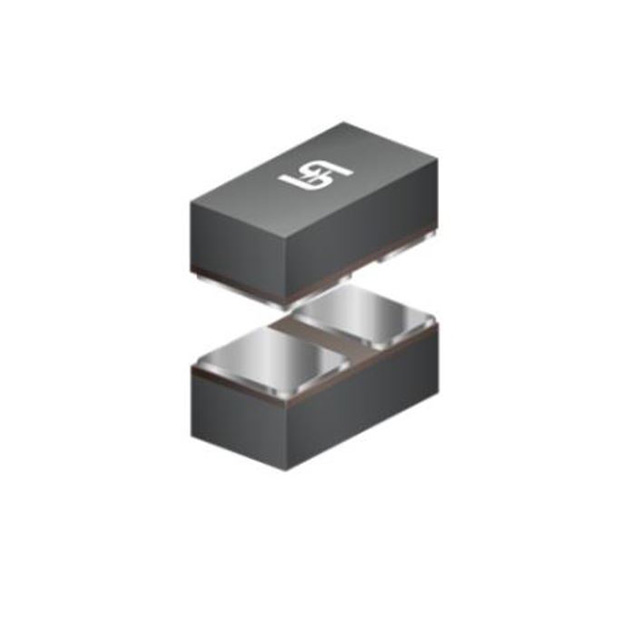

TESD5V0L1UC RJG
ActiveTaiwan Semiconductor Corporation
TVS DIODE 5VWM 15VC DFN1006L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TESD5V0L1UC RJG
ActiveTaiwan Semiconductor Corporation
TVS DIODE 5VWM 15VC DFN1006L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TESD5V0L1UC RJG |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 2 pF |
| Current - Peak Pulse (10/1000µs) | 3 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-882 |
| Power - Peak Pulse | 100 W |
| Power Line Protection | False |
| Supplier Device Package | DFN1006L |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| 2000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| 2000 | $ 0.05 | |||
| Tape & Reel (TR) | 5000 | $ 0.04 | ||
| 10000 | $ 0.03 | |||
Description
General part information
TESD5 Series
15V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006L
