2-1103109-3
ActiveTE Connectivity AMP Connectors

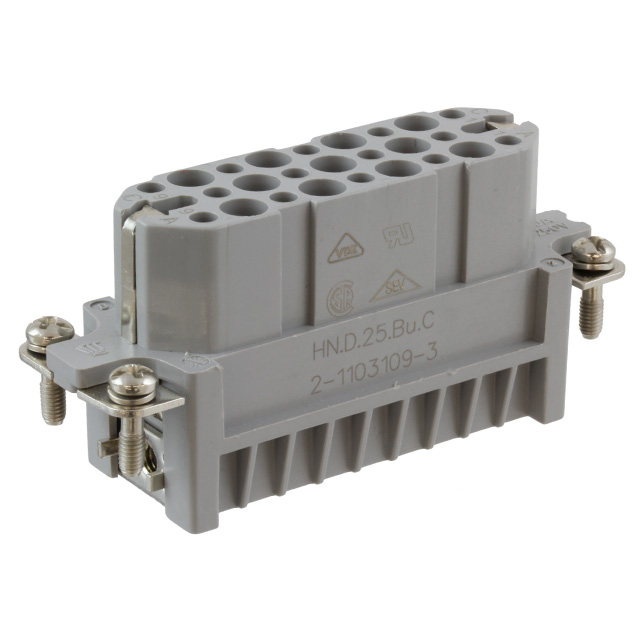

INSERT FEMALE 25POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
2-1103109-3
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 25POS+1GND CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103109-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HTS HN.D |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | Ground |
| Number of Positions | 25 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 5 |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 31.49 | |
1103109 Series
INSERT FEMALE 25POS+1GND CRIMP
| Part | Color | Material Flammability Rating | Connector Type | Voltage Rating | Size | Contact Type | Number of Positions | Number of Positions | Current Rating (Amps) | Gender | Housing Material | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103109-3 | Gray | UL94 V-0 | Insert without Contacts | 250 VDC | 5 | HTS HN.D | Ground | 25 | 10 A | Female | Polycarbonate (PC) | Crimp | 125 °C | -40 °C |
Description
General part information
1103109 Series
Female Insert without Contacts Gray 25+Ground Position Crimp
