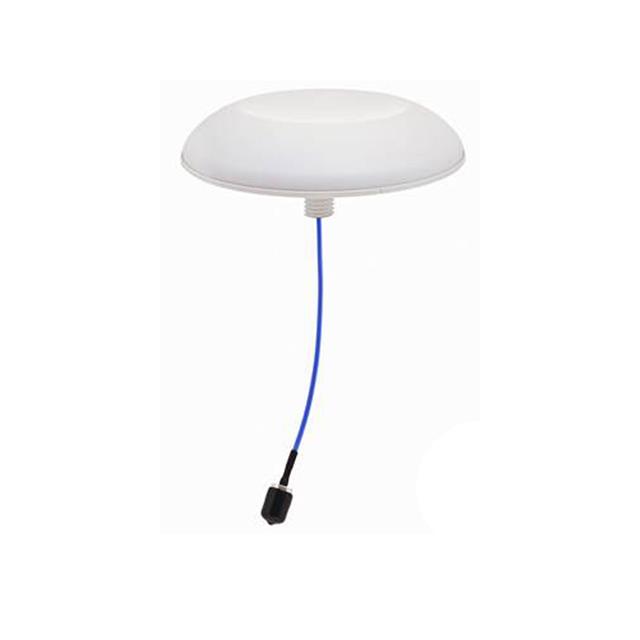

CLS69273P-30D43F

Active

TE Connectivity Raychem Cable Protection

RF ANT 700MHZ/850MHZ MODULE CAB

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RF ANT 700MHZ/850MHZ MODULE CAB

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Gain	Features	Features	VSWR	Number of Bands	Height (Max) [Max]	Height (Max)	Frequency Group	Applications	Power - Max [Max]	Frequency (Center/Band)	Termination
TE Connectivity Raychem Cable Protection CLS69273P-30D43F	Cellular WiFi	2.7 GHz 960 MHz	1.695 GHz 698 MHz	Module	3 dBi 4.1 dBi 5.6 dBi 6.7 dBi 7 dBi 7.3 dBi	Cable	305 mm	1.3 1.5 1.6 1.7 1.8 1.9	8	1.87 in	47.5 mm	Wide Band	DCS GSM LTE UMTS WiMax™	50 W	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	N Type Female
TE Connectivity Raychem Cable Protection CLS69273P-30NF	Cellular WiFi	2.7 GHz 960 MHz	1.695 GHz 698 MHz	Module	3 dBi 4.1 dBi 5.6 dBi 6.7 dBi 7 dBi 7.3 dBi	Cable	305 mm	1.3 1.5 1.6 1.7 1.8 1.9	8	1.87 in	47.5 mm	Wide Band	DCS GSM LTE UMTS WiMax™	50 W	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	N Type Female
TE Connectivity Raychem Cable Protection CLS69273P-B30D43F	Cellular WiFi	2.7 GHz 960 MHz	1.695 GHz 698 MHz	Module	3 dBi 4.1 dBi 5.6 dBi 6.7 dBi 7 dBi 7.3 dBi	Cable	305 mm	1.3 1.5 1.6 1.7 1.8 1.9	8	1.87 in	47.5 mm	Wide Band	DCS GSM LTE UMTS WiMax™	50 W	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	N Type Female
TE Connectivity Raychem Cable Protection CLS69273-30NF	Cellular WiFi	2.7 GHz 960 MHz	1.695 GHz 698 MHz	Module	3 dBi 4.1 dBi 5.6 dBi 6.7 dBi 7 dBi 7.3 dBi	Cable	305 mm		8	1.87 in	47.5 mm	Wide Band	DCS GSM LTE UMTS WiMax™	50 W	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	N Type Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA DCS, GSM, LTE, UMTS, WiMax™ Module N Type Female Panel Mount
