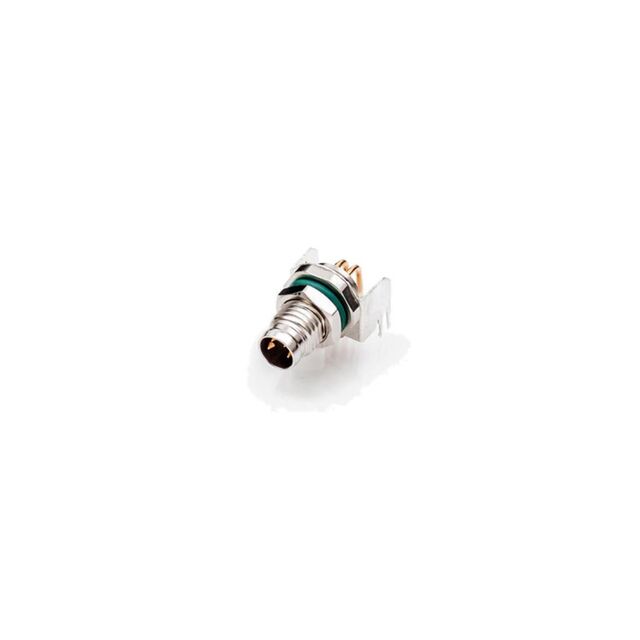

M8AS-04PMMR-SF8001

Active

Amphenol LTW

M8 PANEL 90 PCB CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M8 PANEL 90 PCB CONN

Technical Specifications

Parameters and characteristics for this part

Specification	M8AS-04PMMR-SF8001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Features	Ground, Board Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Metal
Shell Size - Insert	M8-4
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Voltage Rating	Connector Type	Features	Color	Termination	Insert Material	Number of Positions	Contact Finish - Mating	Shielding	Contact Material	Current Rating (Amps)	Shell Finish	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Feature	Shell Size - Insert	Orientation	Ingress Protection	Mounting Type
Amphenol LTW M8AS-04PMMR-SF8001	30 VDC	Male Pins Receptacle	Board Lock Ground	Silver	Solder	Polyamide (PA) Nylon Glass Filled	4	Gold	Shielded	Copper Alloy	3 A	Nickel	Metal	-40 °C	105 ░C	Metal	Bulkhead - Front Side Nut	M8-4	A	IP68 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
