EVB_RT6212AHGJ6F

Active

Richtek USA Inc.

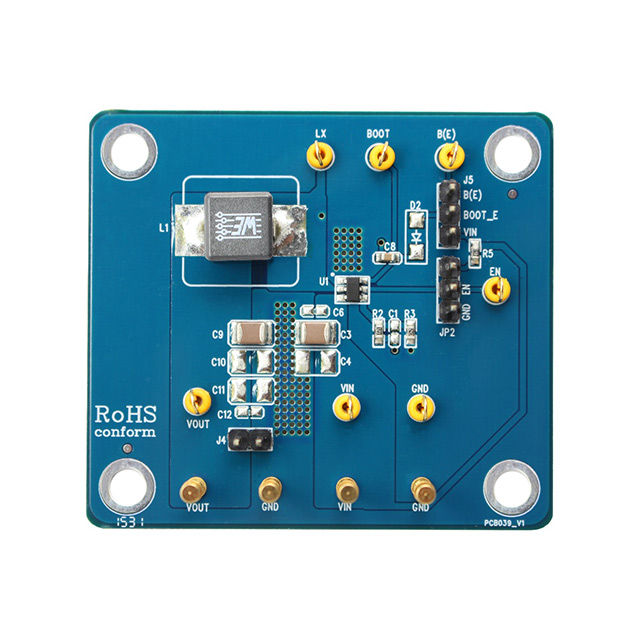

EVAL MODULE FOR RT6212AHGJ6F

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT6212AHGJ6F

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Package / Case	Output Configuration	Current - Output	Topology	Function	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Supplier Device Package	Output Type	Frequency - Switching	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output (Min/Fixed)	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Board Type	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Utilized IC / Part
Richtek USA Inc. RT6212BHRGJ6F	18 V	SOT-23-6 Thin TSOT-23-6	Positive	2 A	Buck	Step-Down	18 V	4.5 V	TSOT-23-6 (FC)	Adjustable	500 kHz	1	85 °C	-40 °C	Surface Mount
Richtek USA Inc. RT6212CHGJ6F	18 V	SOT-23-6 Thin TSOT-23-6	Positive	2 A	Buck	Step-Down	15.48 V	4.5 V	TSOT-23-6	Adjustable	800 kHz	1	85 °C	-40 °C	Surface Mount	0.8 V
Richtek USA Inc. EVB_RT6212AHGJ6F				2 A							500 kHz						Non-Isolated	1	Board(s)	1.2 V	Fully Populated	DC/DC Step Down	18 V	4.5 V	Buck	RT6212A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT6212A ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
