BU-109-5
ActiveMUELLER ELECTRIC

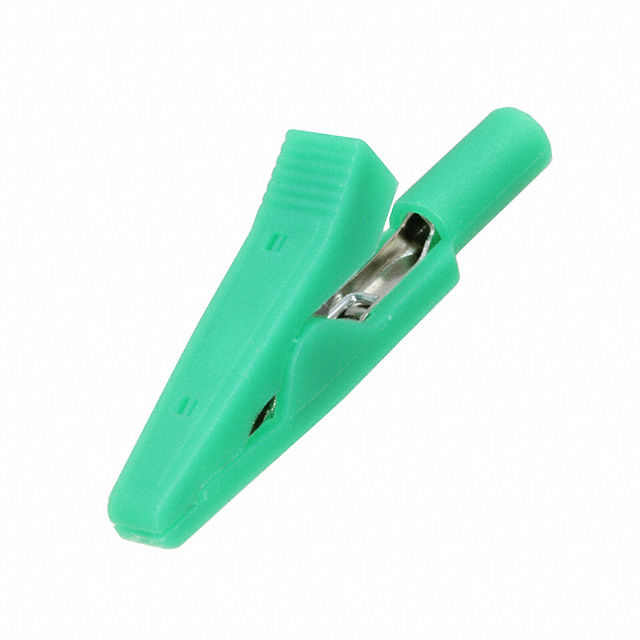

MINI ISULATED CROCODILE CLIP GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BU-109-5
ActiveMUELLER ELECTRIC
MINI ISULATED CROCODILE CLIP GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BU-109-5 | BU-109 Series |
|---|---|---|
| Color | Green | Black, Red, Green |
| Current Rating (Amps) | 10 A | 10 A |
| Insulation | Insulated | Insulated |
| Length [x] | 1.614 in | 1.614 in |
| Length [x] | 41 mm | 41 mm |
| Material - Insulation | Nylon | Nylon |
| Plating | Nickel | Nickel |
| Quantity | 1 Box | 1 Box |
| Termination | Tip Plug, Female Socket (Jack) | Tip Plug, Female Socket (Jack) |
| Voltage - Rated | 300 V | 300 V |
BU-109 Series
GATOR CLIP STEEL INSULATED 10A
| Part | Voltage - Rated | Insulation | Termination | Color | Current Rating (Amps) | Plating | Quantity | Material - Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|
MUELLER ELECTRIC BU-109-0 | 300 V | Insulated | Female Socket (Jack), Tip Plug | Black | 10 A | Nickel | 1 Box | Nylon | 1.614 in | 41 mm |
MUELLER ELECTRIC BU-109-2 | 300 V | Insulated | Female Socket (Jack), Tip Plug | Red | 10 A | Nickel | 1 Box | Nylon | 1.614 in | 41 mm |
MUELLER ELECTRIC BU-109-5 | 300 V | Insulated | Female Socket (Jack), Tip Plug | Green | 10 A | Nickel | 1 Box | Nylon | 1.614 in | 41 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-109 Series
10 A Insulated Alligator, Miniature Test Clip Steel 300V
