BU-109-2

Active

MUELLER ELECTRIC

GATOR CLIP STEEL INSULATED 10A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-109-2

Active

MUELLER ELECTRIC

GATOR CLIP STEEL INSULATED 10A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.65
		10	$ 3.79
		100	$ 3.62
		500	$ 3.50
		1000	$ 3.44
Newark	Each	100	$ 4.95
		500	$ 4.63
		1000	$ 4.26
		2500	$ 3.89

Description

General part information

BU-109 Series

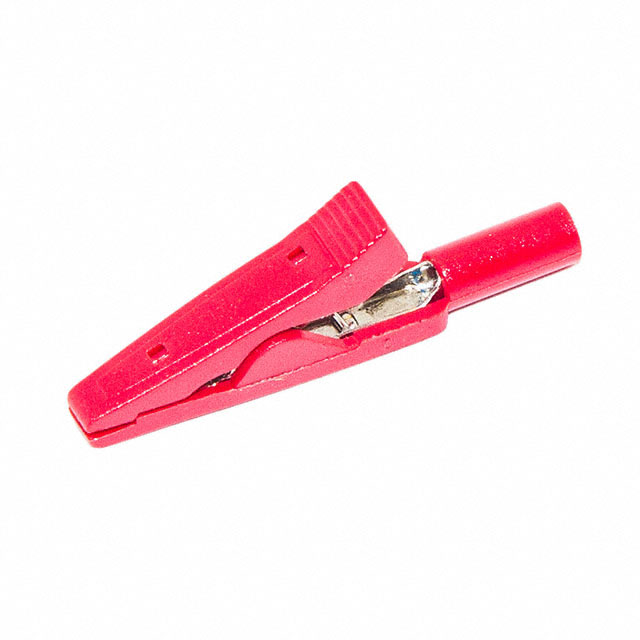

The BU-109-2 is a Mini Insulated Alligator Clip compatible with all 0.08-inch probe tips and 2mm mini-banana plugs. It has nickel-plated steel body and nylon housing.

Specification	BU-109-2	BU-109 Series

Color	Red	Black, Red, Green
Current Rating (Amps)	10 A	10 A
Insulation	Insulated	Insulated
Length [x]	1.614 in	1.614 in
Length [x]	41 mm	41 mm
Material - Insulation	Nylon	Nylon
Plating	Nickel	Nickel
Quantity	1 Box	1 Box
Termination	Tip Plug, Female Socket (Jack)	Tip Plug, Female Socket (Jack)
Voltage - Rated	300 V	300 V

Part	Voltage - Rated	Insulation	Termination	Color	Current Rating (Amps)	Plating	Quantity	Material - Insulation	Length [x]	Length [x]
MUELLER ELECTRIC BU-109-0	300 V	Insulated	Female Socket (Jack), Tip Plug	Black	10 A	Nickel	1 Box	Nylon	1.614 in	41 mm
MUELLER ELECTRIC BU-109-2	300 V	Insulated	Female Socket (Jack), Tip Plug	Red	10 A	Nickel	1 Box	Nylon	1.614 in	41 mm
MUELLER ELECTRIC BU-109-5	300 V	Insulated	Female Socket (Jack), Tip Plug	Green	10 A	Nickel	1 Box	Nylon	1.614 in	41 mm
