2967659

Active

Phoenix Contact

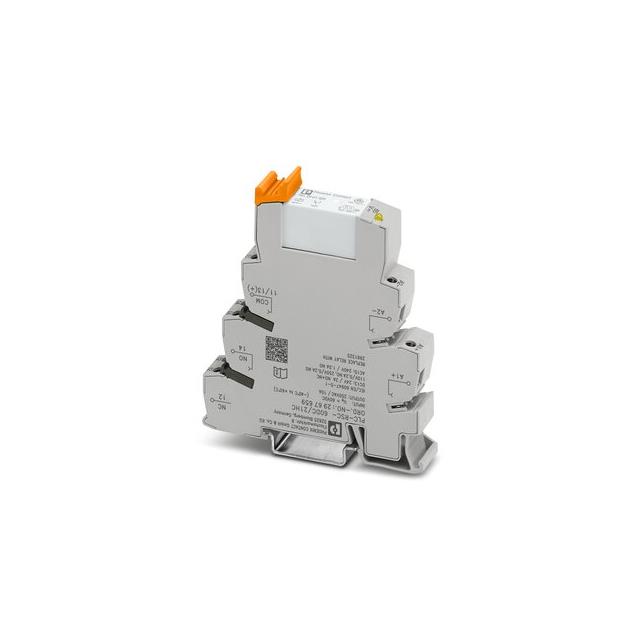

RELAY GEN PURPOSE SPDT 10A 60V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2967659

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10A 60V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.30

Description

General part information

29676 Series

General Purpose Relay SPDT (1 Form C) 60VDC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2967659	29676 Series

Approval Agency	UKCA, CE	UKCA, CE
Coil Current	10 mA	4.5 - 20 mA
Coil Resistance	6 kOhms	2.4 - 1440 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	60 VDC	24 - 230 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	10 A	10 A
Features	Socket Included, Diode, Lighted Indicator	Lighted Indicator, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	7 - 8 ms
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal

29676 Series

RELAY MODULE SCREW CONNECTION TERMINAL SPDT

Part	Release Time	Contact Rating (Current)	Operate Time	Contact Material	Switching Voltage	Termination Style	Relay Type	Approval Agency	Coil Type	Coil Current	Contact Form	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Coil Resistance	Features
Phoenix Contact 2967675	10 ms	10 A	7 ms	Silver Nickel (AgNi)	250 VAC, 250 VDC	Screw Terminal	General Purpose	CE, UKCA	Non Latching	4.5 mA	SPDT (1 Form C)	230 VAC	-40 °C	55 °C	DIN Rail	51.1 kOhms	Lighted Indicator, Socket Included
Phoenix Contact 2967620	10 ms	10 A	8 ms	Silver Nickel (AgNi)	250 VAC, 250 VDC	Screw Terminal	General Purpose	CE, UKCA	Non Latching	18 mA	SPDT (1 Form C)	24 VDC	-40 °C	60 °C	DIN Rail	1440 Ohms	Lighted Indicator, Socket Included
Phoenix Contact 2967662	10 ms	10 A	7 ms	Silver Nickel (AgNi)	250 VAC, 250 VDC	Screw Terminal	General Purpose	CE, UKCA	Non Latching	4.5 mA	SPDT (1 Form C)	120 VAC, 120 VDC	-40 °C	60 °C	DIN Rail	26.66 kOhms	Lighted Indicator, Socket Included
Phoenix Contact 2967659	10 ms	10 A	8 ms	Silver Nickel (AgNi)	250 VAC, 250 VDC	Screw Terminal	General Purpose	CE, UKCA	Non Latching	10 mA	SPDT (1 Form C)	60 VDC	-40 °C	60 °C	DIN Rail	6 kOhms	Diode, Lighted Indicator, Socket Included
Phoenix Contact 2967646	10 ms	10 A	8 ms	Silver Nickel (AgNi)	250 VAC, 250 VDC	Screw Terminal	General Purpose	CE, UKCA	Non Latching	20 mA	SPDT (1 Form C)	48 VDC	-40 °C	60 °C	DIN Rail	2.4 kOhms	Diode, Lighted Indicator, Socket Included
Phoenix Contact 2967633	10 ms	10 A	8 ms	Silver Nickel (AgNi)	250 VAC, 250 VDC	Screw Terminal	General Purpose	CE, UKCA	Non Latching	17.5 mA	SPDT (1 Form C)	24 VAC	-40 °C	60 °C	DIN Rail	1371 Ohms	Lighted Indicator, Socket Included
