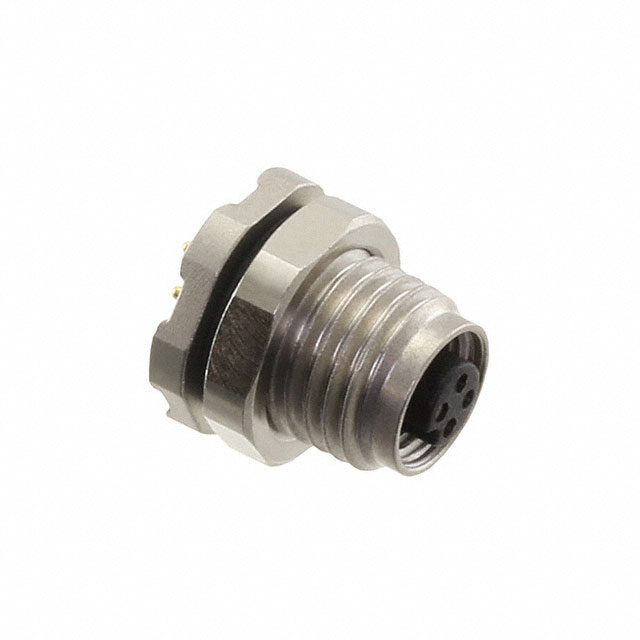

852-003-213R004

Active

MH Connectors

CONN PLUG FMALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Active

MH Connectors

CONN PLUG FMALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	852-003-213R004

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-3
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Connector Type	Contact Finish - Mating	Termination	Ingress Protection	Mounting Type	Insert Material	Mounting Feature	Orientation	Voltage Rating	Material Flammability Rating	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Shell Finish	Shell Material	Shell Size - Insert	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
MH Connectors 852-003-213R004	Female Sockets Plug	Gold	Solder	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	Bulkhead - Front Side Nut	Keyed	60 VDC	UL94 V-0	Shielded	10 çin	0.25 çm	Silver	Nickel	Brass	M5-3	Metal	85 °C	-40 °C	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.00

General part information

3 Position Circular Connector Plug, Female Sockets Solder
