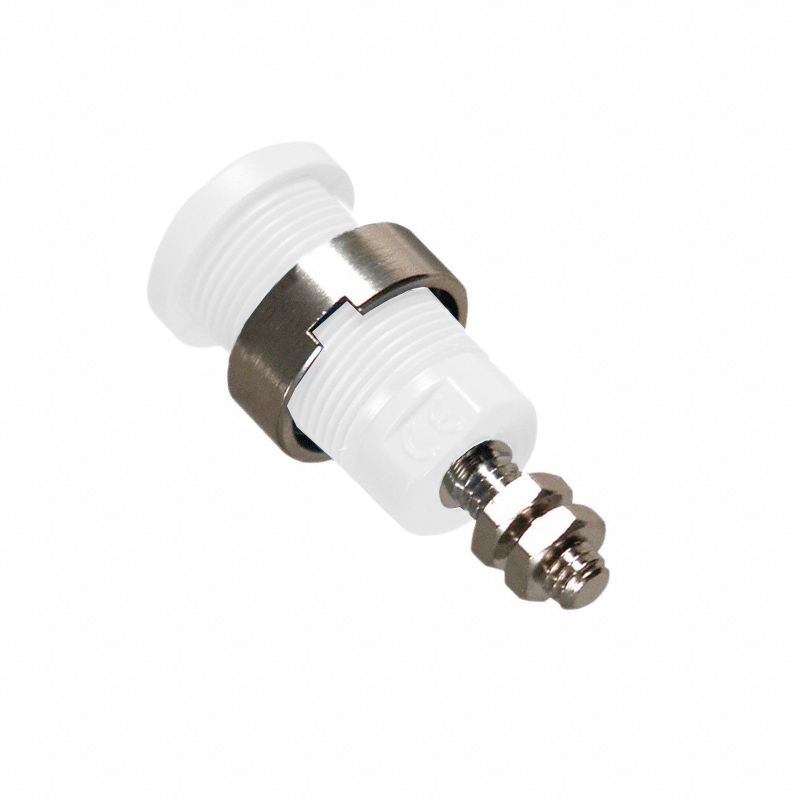

CT2236-9

Active

Cal Test Electronics

CONN BANANA JACK THRD WHITE

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK THRD WHITE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.95

General part information

Banana Jack Connector Standard Banana Threaded, External (Nut) White

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CT2236-9	CT2236 Series

Body Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Color	White	White, Purple, Black, Blue, Gray, Red, Brown
Contact Finish	Nickel	Nickel
Contact Material	Brass	Brass
Gender	Female	Female
Insulation	Mating End Insulated	Mating End Insulated
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Plug/Mating Plug Diameter	Standard Banana	Standard Banana
Termination	Threaded, External (Nut)	Threaded, External (Nut)
Type	Banana Jack	Banana Jack

CONN BANANA JACK THRD WHITE

Part	Body Material	Color	Type	Gender	Insulation	Termination	Contact Finish	Plug/Mating Plug Diameter	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Cal Test Electronics CT2236-9	Nylon, Polyamide (PA)	White	Banana Jack	Female	Mating End Insulated	Threaded, External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-7	Nylon, Polyamide (PA)	Purple	Banana Jack	Female	Mating End Insulated	Threaded, External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-0	Nylon, Polyamide (PA)	Black	Banana Jack	Female	Mating End Insulated	Threaded, External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-6	Nylon, Polyamide (PA)	Blue	Banana Jack	Female	Mating End Insulated	Threaded, External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-8	Nylon, Polyamide (PA)	Gray	Banana Jack	Female	Mating End Insulated	Threaded, External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-2	Nylon, Polyamide (PA)	Red	Banana Jack	Female	Mating End Insulated	Threaded, External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-1	Nylon, Polyamide (PA)	Brown	Banana Jack	Female	Mating End Insulated	Threaded, External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
