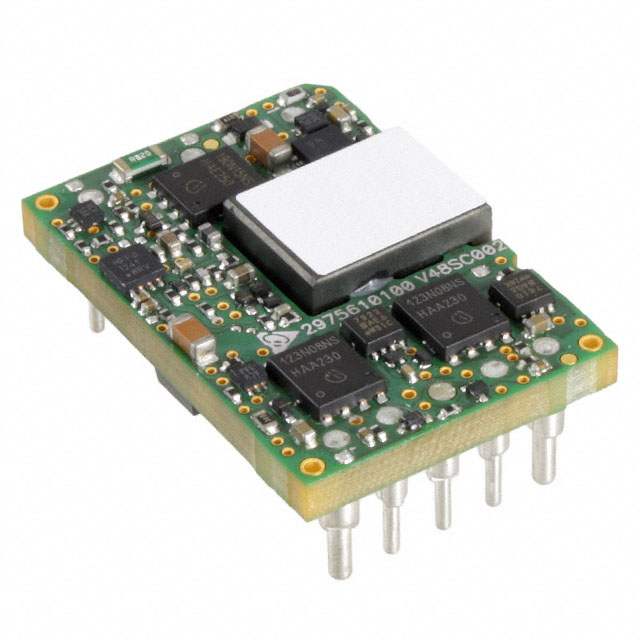

V48SC05017NRFA

Active

Delta Electronics

DC DC CONVERTER 5V 85W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V48SC05017NRFA

Active

Delta Electronics

DC DC CONVERTER 5V 85W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V48SC05017NRFA	V48SC Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	IEC, UL, EN, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	17 A	11 - 20 A
Efficiency	91.5 %	91 - 91.5 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OTP, Remote On/Off, OVP, UVLO, OCP, Adjustable Output, Remote Sense
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-DIP Module, 1/16 Brick	8-DIP Module, 1/16 Brick, Sixteenth Brick
Power (Watts)	85 W	50 - 85 W
Size / Dimension [x]	33 mm	33 mm
Size / Dimension [x]	1.3 "	1.3 "
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [y]	22.9 mm	22.9 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Size / Dimension [z]	0.5 in	0.5 in
Standard Number	-	60950-1, 62368-1
Supplier Device Package	-	Sixteenth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	5 V	3.3 - 5 V

V48SC Series

DC DC CONVERTER 5V 85W

Part	Number of Outputs	Package / Case	Voltage - Isolation	Control Features	Applications	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Type	Features	Mounting Type	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Efficiency	Standard Number	Supplier Device Package	Approval Agency
Delta Electronics V48SC05017NRFA	1	8-DIP Module, 1/16 Brick	1.5 kV	Active Low, Enable	ITE (Commercial)	36 V	85 °C	-40 °C	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	Through Hole	85 W	75 V	5 V	17 A	91.5 %
Delta Electronics V48SC06511NRFA	1	Sixteenth Brick	1.5 kV	Active Low, Enable	ITE (Commercial)	36 V	85 °C	-40 °C							Isolated Module	Adjustable Output, Remote On/Off, Remote Sense	Through Hole	70 W	75 V		11 A	91 %	60950-1, 62368-1	Sixteenth Brick	CSA, EN, IEC, UL
Delta Electronics V48SC05013NRFA	1	8-DIP Module, 1/16 Brick	1.5 kV	Active Low, Enable	ITE (Commercial)	36 V	85 °C	-40 °C	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	Through Hole	65 W	75 V	5 V	13 A	91.5 %
Delta Electronics V48SC3R320NRFA	1	8-DIP Module, 1/16 Brick	1.5 kV	Active Low, Enable	ITE (Commercial)	36 V	85 °C	-40 °C	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	Through Hole		75 V	3.3 V	20 A	91 %
Delta Electronics V48SC3R315NRFA	1	8-DIP Module, 1/16 Brick	1.5 kV	Active Low, Enable	ITE (Commercial)	36 V	85 °C	-40 °C	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	Through Hole	50 W	75 V	3.3 V	15 A	91.5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 23.68

Description

General part information

V48SC Series

Isolated Module DC DC Converter 1 Output 5V 17A 36V - 75V Input
