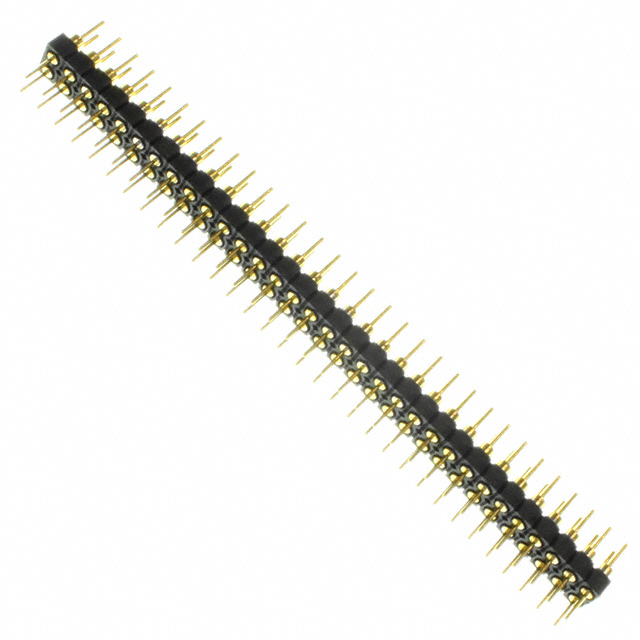

TD-132-G-A - Samtec-TD-132-T-A Connector Headers and PCB Receptacles Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Top Entry Thru-Hole Tube

TD-132-G-A

Active
Samtec Inc.

CONN UNSHROUDED HEADER HDR 64 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Double Row Screw Machine Terminal StripTD Series Datasheet 03+1
TD-132-G-A - Samtec-TD-132-T-A Connector Headers and PCB Receptacles Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Top Entry Thru-Hole Tube

TD-132-G-A

Active
Samtec Inc.

CONN UNSHROUDED HEADER HDR 64 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Documents.100" Double Row Screw Machine Terminal StripTD Series Datasheet 03+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTD-132-G-A
ColorBlack
Connector TypeHeader
Contact FinishGold
Contact Finish Thickness0.51 µm
Contact Finish Thickness20 µin
Mounting TypeThrough Hole
Number of Positions64
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 13.73
10$ 12.99
25$ 12.51
50$ 12.20
100$ 9.67
DigikeyTube 1$ 13.73
10$ 12.99
25$ 12.51
50$ 12.20
100$ 12.14

Description

General part information

TD-132 Series

64 Position Header Connector Post Gold
