A98000-513

Active

Omnetics

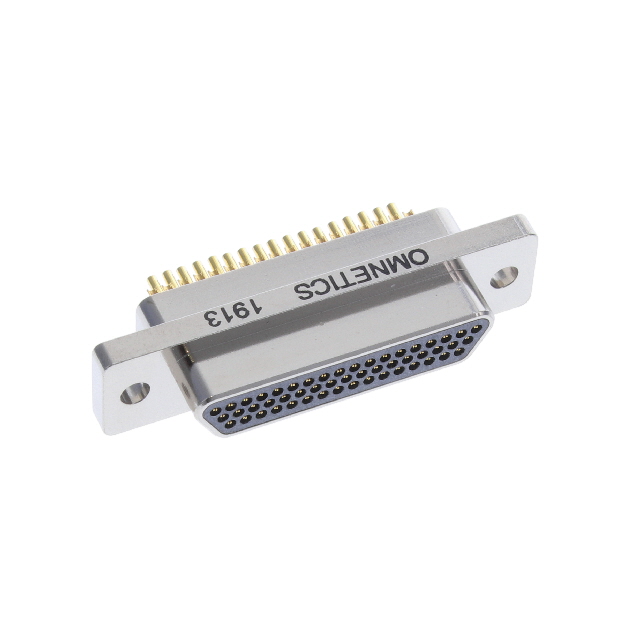

CONN MICRO-D PLUG 51POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 51POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A98000-513	MMDP-051 Series

1st Connector	-	Plug, Male Pins
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	51	51
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY MICRO-D 51POS 1.5'

Part	Contact Finish	Color	Shielding	2nd Connector	Number of Positions	Length [x]	Length [x]	Type	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Mounting Type	Connector Type	Dielectric Material	Connector Style	Flange Feature	Shell Material, Finish	Contact Form	Number of Rows
Omnetics A98100-513	Gold	Individual, Multiple	Unshielded	Individual Wire Leads	51	457.2 mm	1.5 ft	D-Type, Micro-D	50 µin	1.27 µm	Plug, Male Pins
Omnetics A98000-513	Gold				51				50 µin	1.27 µm		0.05	0.05	Copper Alloy	-55 °C	125 °C	3 A	Signal	Free Hanging (In-Line)	Male Pins, Plug	Thermoplastic	D-Type, Micro-D	Housing/Shell (Unthreaded)	Aluminum, Electroless, Nickel Plated	Stamped	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

51 Position D-Type, Micro-D Plug, Male Pins Connector
