18982-7SG-522

Active

Conxall/Switchcraft

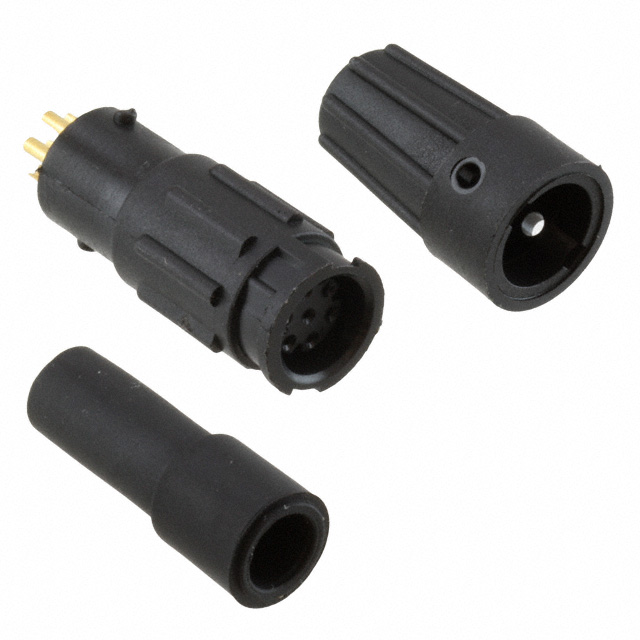

CONN RCPT FMALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	18982-7SG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Material Flammability Rating	Current Rating (Amps)	Color	Primary Material	Features	Orientation	Voltage Rating	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Backshell Material, Plating	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Applications	Ingress Protection	Contact Finish - Mating
Conxall/Switchcraft 18982-7SG-522	UL94 HB	3.5 A	Black	Plastic	Backshell	B	600 VAC	Unshielded	Free Hanging (In-Line)	85 °C	-40 °C	Receptacle, Female Sockets	7	Thermoplastic	Copper Alloy	5.84 mm	0.22 in	5.59 mm	0.23 in	Bayonet Lock	Data, Industrial, Instrumentation, Medical	IP67 - Dust Tight, Waterproof	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
