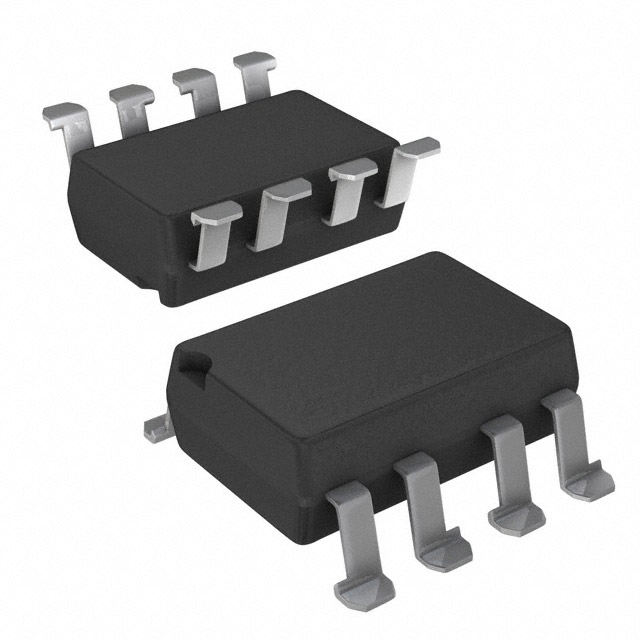

6N135-X007T

Active

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 8DIP

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	6N135-X007T

Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output / Channel [custom]	8 mA
Current Transfer Ratio (Min) [Min]	7 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Supplier Device Package	8-SMD
Turn On / Turn Off Time (Typ) [custom]	300 ns
Turn On / Turn Off Time (Typ) [custom]	300 ns
Voltage - Isolation	5300 Vrms

OPTOISO 5.3KV TRANS W/BASE 8DIP

Part	Input Type	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Current - Output / Channel [custom]	Current - DC Forward (If) (Max) [Max]	Voltage - Isolation	Current Transfer Ratio (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Supplier Device Package	Mounting Type
Vishay Semiconductor Opto Division 6N135-X007T	DC	300 ns	300 ns	8 mA	25 mA	5300 Vrms	7 %	100 °C	-55 °C	1	8-SMD	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor with Base Output 5300Vrms 1 Channel 8-SMD
