1116137

Active

Phoenix Contact

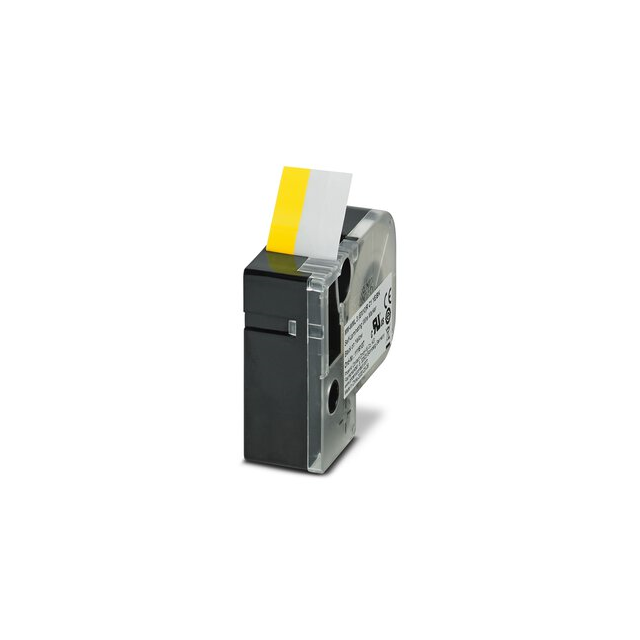

CABLE MARKER LABEL, ROLL, YELLOW

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE MARKER LABEL, ROLL, YELLOW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1116137	MM-WML Series

Color	-	White, Black
For Use With/Related Products	-	Thermal Transfer Printer
Label Size	-	1.44 in
Label Size	-	0.94 in
Label Size	-	0.3 in
Label Size [diameter]	0.12 in	0.12 - 0.55 in
Label Size [diameter]	3 mm	3 - 14 mm
Label Size [x]	18 mm	18 - 63.5 mm
Label Size [x]	0.71 "	0.71 - 2.5 "
Label Size [y]	6 mm	6 - 24 m
Label Size [y]	0.24 in	0.24 - 255.91 in
Label Type	Standard, Continuous	Self Laminating, Standard, Standard, Continuous
Material	Vinyl Polymer	Vinyl Polymer
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C

LABEL SELF LAMINATING WHITE

Part	For Use With/Related Products	Color	Label Type	Material	Label Size [x]	Label Size [diameter]	Label Size [diameter]	Label Size [y]	Label Size [y]	Label Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [x]	Label Size [y]	Label Size [diameter]
Phoenix Contact 0803931	Thermal Transfer Printer	White	Self Laminating	Vinyl Polymer	18 mm	3 mm	0.12 in	6.5 m	255.91 in	0.71 "	-40 °C	80 C
Phoenix Contact 1116197		Black, White	Standard	Vinyl Polymer	31.8 mm	6 mm	0.24 in	12.7 mm	0.5 "	1.25 in	-40 °C	80 C
Phoenix Contact 1116146		Black, White	Standard	Vinyl Polymer	63.5 mm	14 mm	0.55 in	24 mm	0.94 in	2.5 in	-40 °C	80 C
Phoenix Contact 0803932	Thermal Transfer Printer	White	Self Laminating	Vinyl Polymer							-40 °C	80 C
Phoenix Contact 1116196		Black, White	Standard	Vinyl Polymer	25.4 mm	5 mm	0.2 in	24 mm	0.94 in	1 in	-40 °C	80 C
Phoenix Contact 1116198		Black, White	Standard	Vinyl Polymer	36.5 mm	7.5 mm		24 mm			-40 °C	80 C	1.44 in	0.94 in	0.3 in
Phoenix Contact 1116137			Standard, Continuous	Vinyl Polymer	18 mm	3 mm	0.12 in	6 mm	0.24 in	0.71 "	-40 °C	80 C
Phoenix Contact 1116138			Standard, Continuous	Vinyl Polymer	24 mm	5 mm	0.2 in	6 mm	0.24 in	0.94 in	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black, Yellow Standard, Continuous Label 0.71" x 0.24" (18.0mm x 6.0mm); Cable O.D. 0.12" (3.0mm)
