1116197

Active

Phoenix Contact

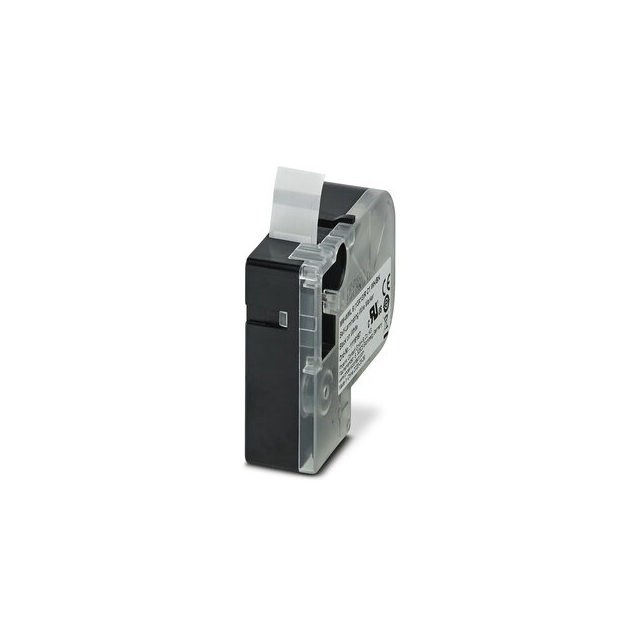

CABLE MARKER, ROLL, WHITE/BLACK,

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE MARKER, ROLL, WHITE/BLACK,

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black, White Standard Label 1.25" x 0.50" (31.8mm x 12.7mm); Cable O.D. 0.24" (6.0mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1116197	MM-WML Series

Color	White, Black	White, Black
For Use With/Related Products	-	Thermal Transfer Printer
Label Size	-	1.44 in
Label Size	-	0.94 in
Label Size	-	0.3 in
Label Size [diameter]	6 mm	3 - 14 mm
Label Size [diameter]	0.24 in	0.12 - 0.55 in
Label Size [x]	1.25 in	0.71 - 2.5 "
Label Size [x]	31.8 mm	18 - 63.5 mm
Label Size [y]	0.5 "	0.24 - 255.91 in
Label Size [y]	12.7 mm	6 - 24 m
Label Type	Standard	Self Laminating, Standard, Standard, Continuous
Material	Vinyl Polymer	Vinyl Polymer
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C

LABEL SELF LAMINATING WHITE

Part	For Use With/Related Products	Color	Label Type	Material	Label Size [x]	Label Size [diameter]	Label Size [diameter]	Label Size [y]	Label Size [y]	Label Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [x]	Label Size [y]	Label Size [diameter]
Phoenix Contact 0803931	Thermal Transfer Printer	White	Self Laminating	Vinyl Polymer	18 mm	3 mm	0.12 in	6.5 m	255.91 in	0.71 "	-40 °C	80 C
Phoenix Contact 1116197		Black, White	Standard	Vinyl Polymer	31.8 mm	6 mm	0.24 in	12.7 mm	0.5 "	1.25 in	-40 °C	80 C
Phoenix Contact 1116146		Black, White	Standard	Vinyl Polymer	63.5 mm	14 mm	0.55 in	24 mm	0.94 in	2.5 in	-40 °C	80 C
Phoenix Contact 0803932	Thermal Transfer Printer	White	Self Laminating	Vinyl Polymer							-40 °C	80 C
Phoenix Contact 1116196		Black, White	Standard	Vinyl Polymer	25.4 mm	5 mm	0.2 in	24 mm	0.94 in	1 in	-40 °C	80 C
Phoenix Contact 1116198		Black, White	Standard	Vinyl Polymer	36.5 mm	7.5 mm		24 mm			-40 °C	80 C	1.44 in	0.94 in	0.3 in
Phoenix Contact 1116137			Standard, Continuous	Vinyl Polymer	18 mm	3 mm	0.12 in	6 mm	0.24 in	0.71 "	-40 °C	80 C
Phoenix Contact 1116138			Standard, Continuous	Vinyl Polymer	24 mm	5 mm	0.2 in	6 mm	0.24 in	0.94 in	-40 °C	80 C
