102953-6

Active

TE Connectivity Aerospace, Defense and Marine

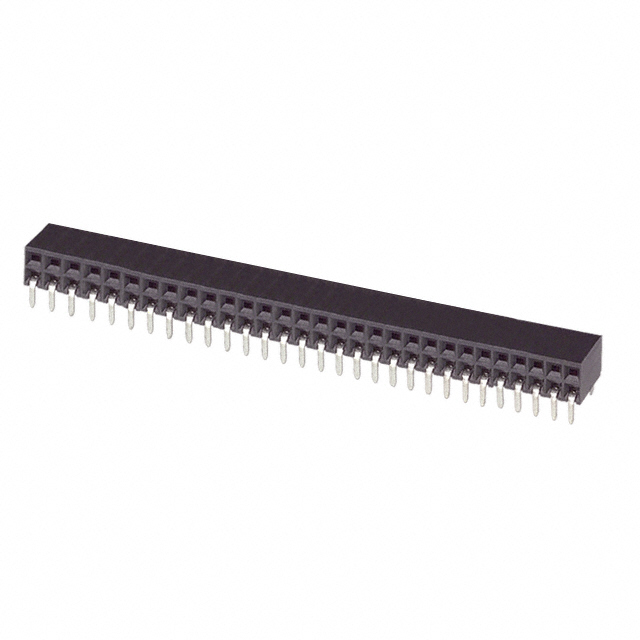

CONN RCPT 60POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN RCPT 60POS 0.1 GOLD PCB R/A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	102953-6	102953 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	2.92 mm	2.92 mm
Contact Length - Post	0.115 in	0.115 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.05 mm	6.05 mm
Insulation Height	0.238 in	0.238 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	60	60 - 170
Number of Positions Loaded	All	All
Number of Rows	2	2
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

CONN RCPT 120P 0.1 GOLD PCB R/A

Part	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Material	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Mating	Termination	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Insulation Color	Number of Positions Loaded	Number of Rows	Contact Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity Aerospace, Defense and Marine 102953-1	Polyphenylene Sulfide (PPS), Glass Filled	2.92 mm	0.115 in	Gold	Phosphor Bronze	0.1 in	2.54 mm	Square	Gold	Solder	Push-Pull	6.05 mm	0.238 in	Through Hole, Right Angle	Receptacle	2.54 mm	0.1 in	Flash	Black	All	2	Female Socket	120	1.27 µm	50 µin
TE Connectivity Aerospace, Defense and Marine 102953-6	Polyphenylene Sulfide (PPS), Glass Filled	2.92 mm	0.115 in	Gold	Phosphor Bronze	0.1 in	2.54 mm	Square	Gold	Solder	Push-Pull	6.05 mm	0.238 in	Through Hole, Right Angle	Receptacle	2.54 mm	0.1 in	Flash	Black	All	2	Female Socket	60	1.27 µm	50 µin
TE Connectivity Aerospace, Defense and Marine 102953-5	Polyphenylene Sulfide (PPS), Glass Filled	2.92 mm	0.115 in	Gold	Phosphor Bronze	0.1 in	2.54 mm	Square	Gold	Solder	Push-Pull	6.05 mm	0.238 in	Through Hole, Right Angle	Receptacle	2.54 mm	0.1 in	Flash	Black	All	2	Female Socket	170	1.27 µm	50 µin
