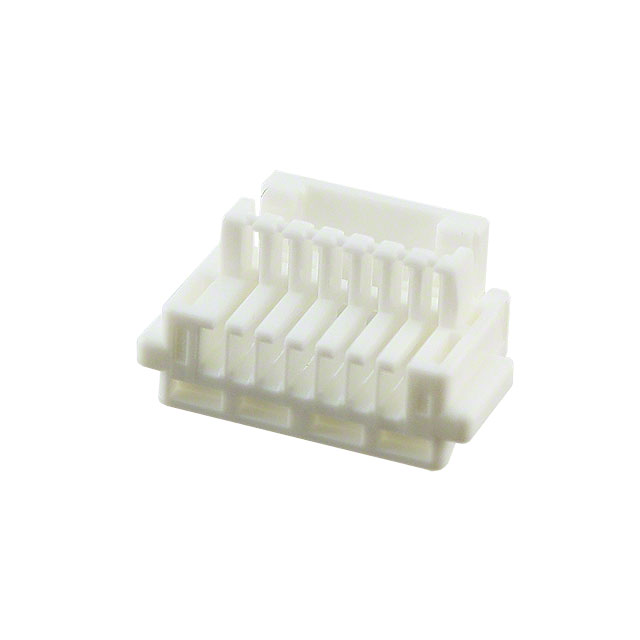

GVHRSF-07V-S

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	GVHRSF-07V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	7
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Note	Fastening Type	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Contact Type	Insulation Material	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Color
JST Sales America Inc. GVHRSF-08V-S	Contacts Not Included	Latch Lock	1	8	0.049 in	1.25 mm	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line) Right Angle	Receptacle	-25 °C	85 °C	Crimp	Natural
JST Sales America Inc. GVHRSF-05V-S	Contacts Not Included	Latch Lock	1		0.049 in	1.25 mm	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line) Right Angle	Receptacle	-25 °C	85 °C	Crimp	Natural
JST Sales America Inc. GVHRSF-03V-S	Contacts Not Included	Latch Lock	1		0.049 in	1.25 mm	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line) Right Angle	Receptacle	-25 °C	85 °C	Crimp	Natural
JST Sales America Inc. GVHRSF-09V-S	Contacts Not Included	Latch Lock	1	9	0.049 in	1.25 mm	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line) Right Angle	Receptacle	-25 °C	85 °C	Crimp	Natural
JST Sales America Inc. GVHRSF-04V-S	Contacts Not Included	Latch Lock	1	4	0.049 in	1.25 mm	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line) Right Angle	Receptacle	-25 °C	85 °C	Crimp	Natural
JST Sales America Inc. GVHRSF-07V-S	Contacts Not Included	Latch Lock	1	7	0.049 in	1.25 mm	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line) Right Angle	Receptacle	-25 °C	85 °C	Crimp	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.07

General part information

7 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)
