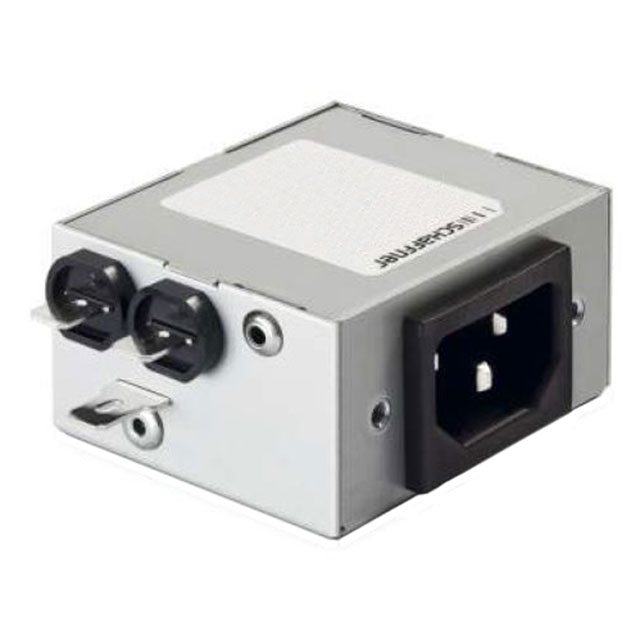

FN9246B-12-06 - FN9246 Series

FN9246B-12-06

Active
TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 12A FASTON IEC INLET W/EARTH LINE CHOKE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
FN9246B-12-06 - FN9246 Series

FN9246B-12-06

Active
TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 12A FASTON IEC INLET W/EARTH LINE CHOKE

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationFN9246B-12-06
ApplicationsLighting
Approval AgencyUR, SEMKO, CSA
ConfigurationSingle Stage
Current12 A
Filter TypeSingle Phase
Frequency - Operating400 Hz
Inductance1.85 mH
Mounting TypeChassis Mount
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Termination StyleQuick Connect
Voltage - Rated AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 37.24
10$ 28.78
25$ 26.09
40$ 24.84
80$ 23.15
230$ 20.87
440$ 19.63
SagerN/A 1$ 22.49
16$ 21.26
32$ 20.69
64$ 20.16
332$ 18.81

Description

General part information

Schaffner FN9246 Series

Single Phase EMC/EMI Line Filter 12 A 250V DC ~ 400Hz Single Stage Quick Connect

Documents

Technical documentation and resources

Datasheet

Datasheet

Datasheet

Document
