ZA-40AFRS-BA0001

Active

Amphenol LTW

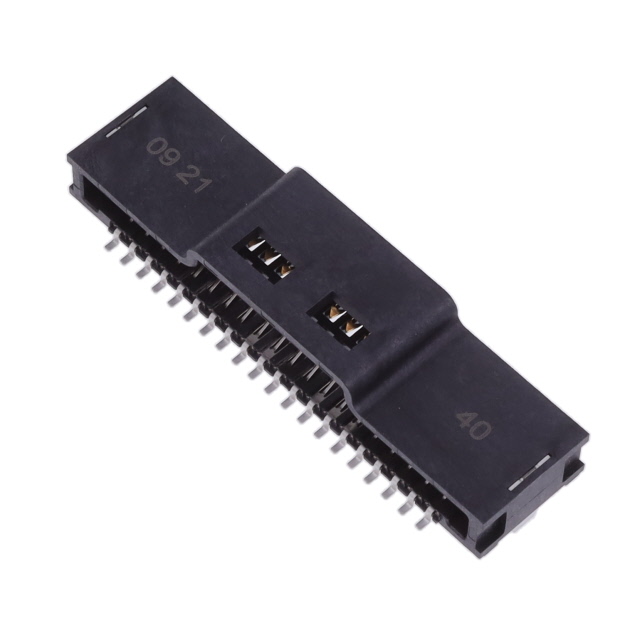

FFC / FPC BOARD CONNECTOR, R/A, 0.9 MM, 40 CONTACTS, RECEPTACLE, Z-CONNECT SERIES, SURFACE MOUNT

Search across all available documentation for this part.

Active

Amphenol LTW

FFC / FPC BOARD CONNECTOR, R/A, 0.9 MM, 40 CONTACTS, RECEPTACLE, Z-CONNECT SERIES, SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	ZA-40AFRS-BA0001

Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Flat Flex Type	FPC, FFC
Height Above Board	7.9 mm
Height Above Board	0.311 in
Housing Color	Black
Housing Material	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.035 in
Pitch [x]	0.9 mm
Termination	Solder
Voltage Rating	120 VDC

FFC / FPC BOARD CONNECTOR, R/A, 0.9 MM, 40 CONTACTS, RECEPTACLE, Z-CONNECT SERIES, SURFACE MOUNT

Part	Connector/Contact Type	Termination	Features	Contact Material	Contact Finish	Pitch [x]	Pitch [x]	Voltage Rating	Housing Color	Height Above Board	Height Above Board	Mounting Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Flat Flex Type
Amphenol LTW ZA-40AFRS-BA0001	Contacts, Bottom	Solder	Board Guide, Solder Retention	Copper Alloy	Gold	0.035 in	0.9 mm	120 VDC	Black	7.9 mm	0.311 in	Surface Mount, Right Angle	Thermoplastic	-40 °C	110 °C	40	FFC, FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position FFC, FPC Connector Contacts, Bottom 0.035" (0.90mm) Surface Mount, Right Angle
