31-343-RFX

Active

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	31-343-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

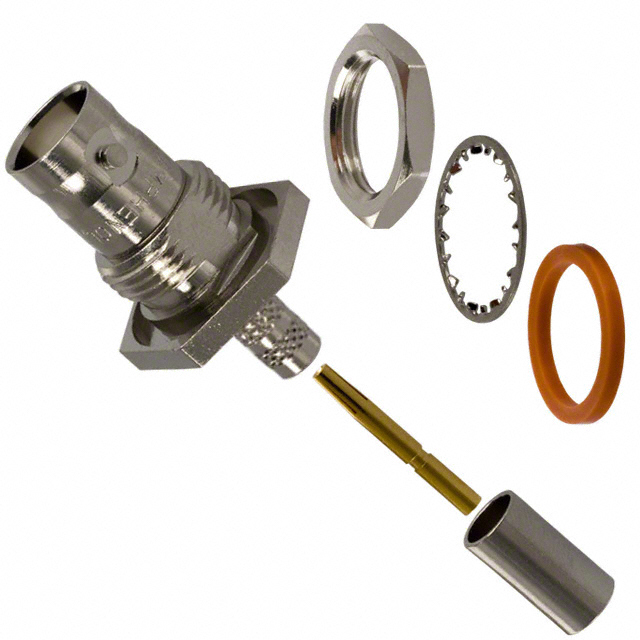

Includes	1 Gasket, 1 Connector, 1 Nut, 1 Contact, 1 Lockwasher, 1 Insulator, 1 Ferrule
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Center Contact Plating	Body Finish	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Material	Connector Style	Fastening Type	Dielectric Material	Voltage Rating	Mating Cycles	Cable Group	Housing Color	Mounting Feature	Impedance	Contact Termination	Connector Type	Number of Ports	Includes	Center Contact Material
Amphenol RF 31-343-RFX	Crimp	Gold	Nickel	0.2 dB	-65 ░C	165 °C	4 GHz	Brass	BNC	Bayonet Lock	Polyoxymethylene (POM) Acetal	500 V	500	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Silver	Bulkhead - Front Side Nut	50 Ohms	Crimp	Female Socket Jack	1	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Insulator 1 Lockwasher 1 Nut	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
