77804W 010100

Active

Belden Inc.

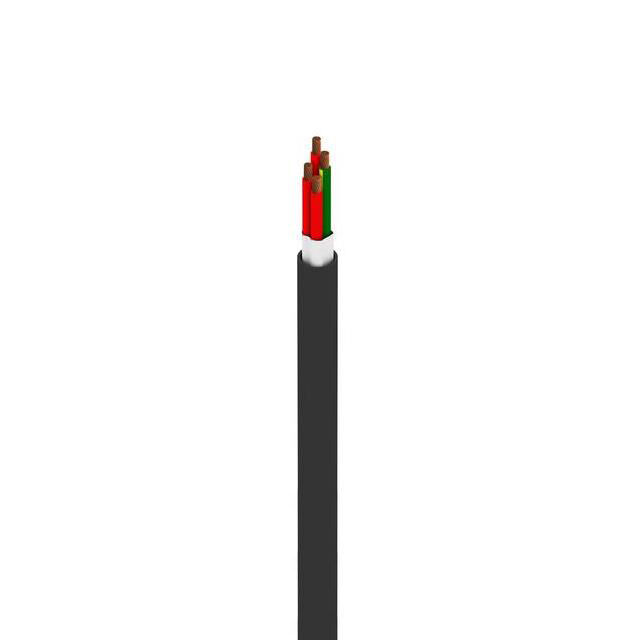

CABLE 4COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	77804W 010100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	105
Conductor Strand [custom]	38 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.28 mm
Jacket (Insulation) Diameter [diameter]	0.326 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-5 °C
Ratings	UL Style 2587
Wire Gauge	18 AWG

Part	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Jacket Color	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 77804W 010100	Poly-Vinyl Chloride (PVC)	8.28 mm	0.326 in	Multi-Conductor	Copper Bare	4	Poly-Vinyl Chloride (PVC)	18 AWG	30.5 m	100 ft	105	38 AWG	90 °C	-5 °C	UL Style 2587	Black	Oil Resistant	0.889 mm	0.035 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 4.21

General part information

4 Conductor Multi-Conductor Cable Black 18 AWG 100.0' (30.5m)
