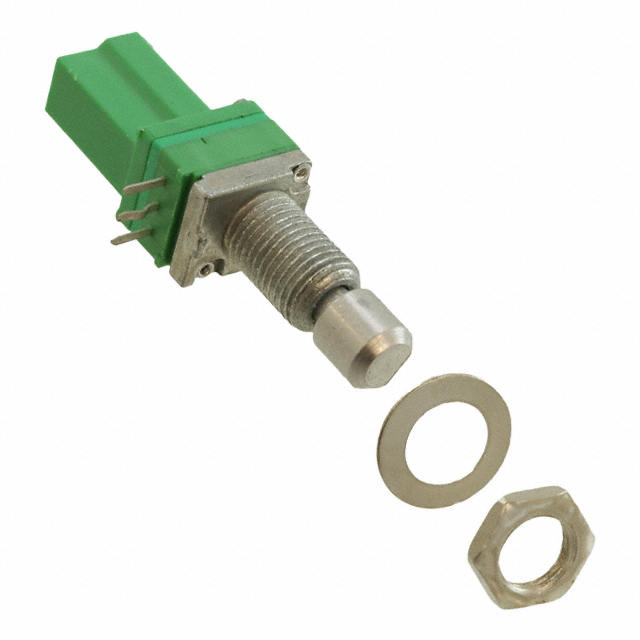

P091P-FC25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks

Technical documentation and resources

Parameters and characteristics commom to parts in this series

POT 10K OHM 1/20W PLASTIC LINEAR

Part	Tolerance	Number of Turns	Actuator Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Taper	Actuator Length [x]	Actuator Length [x]	Termination Style	Resistive Material	Bushing Thread	Bushing Thread	Adjustment Type	Number of Gangs	Rotation	Resistance (Ohms)	Power (Watts)	Power (Watts)	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Resistance (Ohms)	Power (Watts)
TT Electronics/BI P091P-FC25BR10K	20 %	1	Flatted	0.236 in	6 mm	Linear	0.984 in	25 mm	Board Locks, PC Pins	Conductive Plastic	0.75	M7	Side Adjustment	1	300 ░	10k	0.05 W	50 mW	0.374 in	0.447 in	9.5 mm	11.35 mm
TT Electronics/BI P091P-FC25BR100K	20 %	1	Flatted	0.236 in	6 mm	Linear	0.984 in	25 mm	Board Locks, PC Pins	Conductive Plastic	0.75	M7	Side Adjustment	1	300 ░		0.05 W	50 mW	0.374 in	0.447 in	9.5 mm	11.35 mm	100 kOhms
TT Electronics/BI P091P-FC25CR5K	20 %	1	Flatted	0.236 in	6 mm	Reverse Logarithmic	0.984 in	25 mm	Board Locks, PC Pins	Conductive Plastic	0.75	M7	Side Adjustment	1	300 ░		0.025 W		0.374 in	0.447 in	9.5 mm	11.35 mm	5 kOhms	0.025 W
