172113H243

Active

Amphenol RF

RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT PLUG, SOLDER, 50 OHM, BELDEN 9913, LMR-400, BRASS

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT PLUG, SOLDER, 50 OHM, BELDEN 9913, LMR-400, BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	172113H243

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-400, Belden 9913, Belden 9914
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

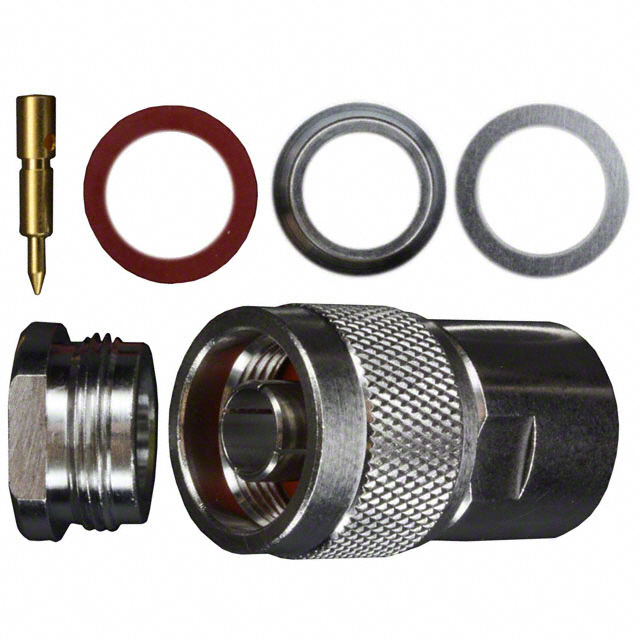

Includes	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

Part	Shield Termination	Ingress Protection	Voltage Rating	Housing Color	Center Contact Material	Body Material	Cable Group	Body Finish	Number of Ports	Includes	Mating Cycles	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Plating	Impedance	Dielectric Material	Mounting Type	Frequency - Max [Max]	Insertion Loss
Amphenol RF 172113H243	Clamp	Weatherproof	1500 V	Silver	Brass	Brass	Belden 9913 Belden 9914 LMR-400	White Bronze	1	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	500	Crimp	Male Pin Plug	-65 ░C	165 °C	N Type	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	11 GHz	0.15 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
