345-086-521-588
ActiveEDAC Inc.

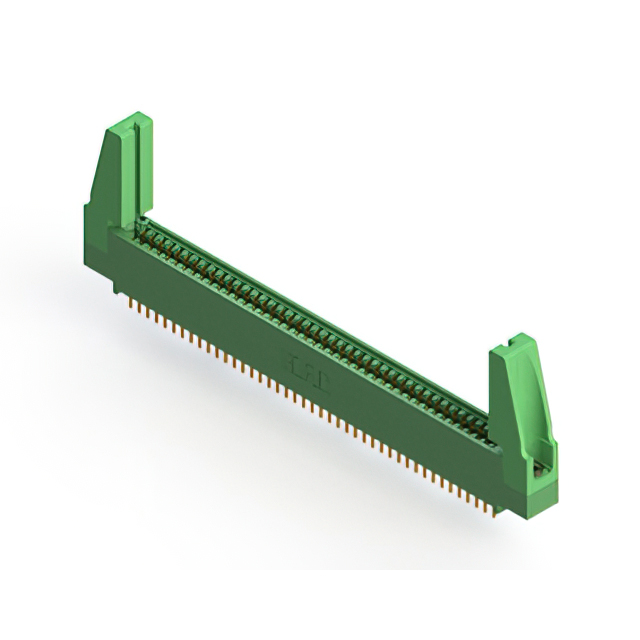

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 86 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-086-521-588
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 86 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-086-521-588 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-086 Series
...
| Part | Contact Type | Mounting Type | Card Type | Pitch [x] | Pitch [x] | Termination | Gender | Contact Material | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Positions | Material - Insulation | Read Out | Number of Rows | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Color | Features | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Green | ||
EDAC Inc. | Cantilever | Board Edge Straddle Mount | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Green | Card Extender | |
EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Green | Side Mount Opening Unthreaded | |
EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Cantilever | Through Hole Right Angle | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Cantilever | Board Edge Straddle Mount | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 4-40 Threaded Insert Top Mount Opening | |||
EDAC Inc. | Cantilever | Through Hole Right Angle | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | Female | Copper Alloy | 2 | -40 °C | 105 ░C | Gold | 86 | Polyester Thermoplastic | Dual | 2 | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-086 Series
86 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
