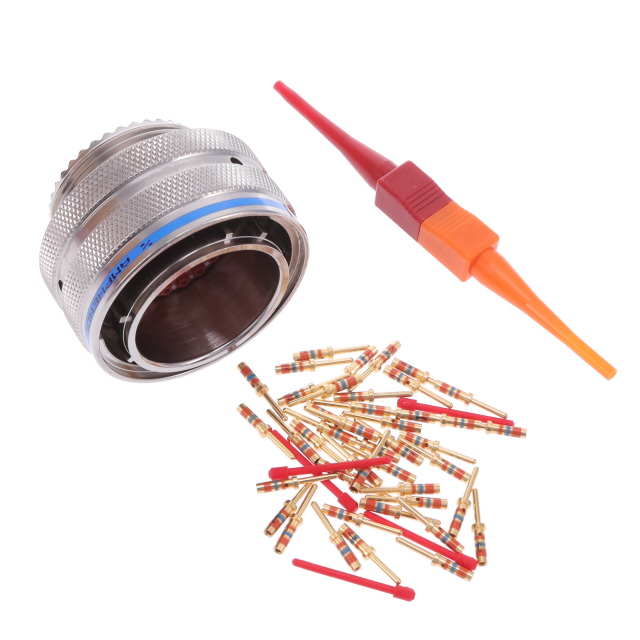

MS27467T21F41P

Active

Amphenol Aerospace Operations

CONN PLUG MALE 41POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS27467T21F41P

Active

Amphenol Aerospace Operations

CONN PLUG MALE 41POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T21F41P

Applications	Military, Aviation
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	41
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	41
Shell Size - Insert [Min]	21
Shielding	Shielded
Termination	Crimp

MS27467T21F Series

Part	Number of Positions	Ingress Protection	Shielding	Fastening Type	Applications	Shell Material	Connector Type	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Qualification	Mounting Type	Contact Material	Termination	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Contact Finish - Mating	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert	Type	Contact Size	Note	Shell Size, MIL	Contact Shape	Contact Type	Housing Color
Amphenol Aerospace Operations MS27467T21F75PB	4	Environment Resistant	Shielded	Bayonet Lock	Aviation Marine Military	Aluminum Alloy	Male Pins Plug	B	1.27 µm	50 µin	Electroless Nickel	MIL-DTL-38999 Series I	Free Hanging (In-Line)	Copper Alloy	Crimp	Military	-65 ░C	200 °C	Silver	Coupling Nut	75	21	Gold	Metal
Amphenol Aerospace Operations MS27467T21F75P	4	Environment Resistant	Shielded	Bayonet Lock	Aviation Marine Military	Aluminum Alloy	Male Pins Plug	N	1.27 µm	50 µin	Electroless Nickel	MIL-DTL-38999 Series I	Free Hanging (In-Line)	Copper Alloy	Crimp	Military	-65 ░C	200 °C	Silver	Coupling Nut	75	21	Gold	Metal
Amphenol Aerospace Operations MS27467T21F41P	41	Environment Resistant	Shielded	Bayonet Lock	Aviation Military	Aluminum	Male Pins Plug	N	1.27 µm	50 µin	Electroless Nickel	MIL-DTL-38999 Series I	Free Hanging (In-Line)	Copper Alloy	Crimp	Military	-65 ░C	200 °C	Silver	Coupling Nut			Gold	Metal	21	41
Amphenol Aerospace Operations MS27467T21F11H	11	Environment Resistant	Shielded	Bayonet Lock	Aviation Military	Aluminum	Male Pins Plug	N	2.54 çm	100 çin	Electroless Nickel	MIL-DTL-38999 Series I	Free Hanging (In-Line)	Copper Alloy	Crimp	Military	-65 ░C	200 °C	Silver	Coupling Nut			Gold	Metal			21-11
Amphenol Aerospace Operations MS27467T21F35A	79	Environment Resistant	Shielded	Bayonet Lock		Aluminum	Plug Housing	N			Electroless Nickel	MIL-DTL-38999 Series	Free Hanging (In-Line)			Military	-65 ░C	200 °C		Coupling Nut					21	35		For Male Pins	22D	Contacts Not Included	G	Circular	Crimp	Silver
Amphenol Aerospace Operations MS27467T21F1P	79	Environment Resistant	Shielded	Bayonet Lock	Aviation Marine Military	Aluminum Alloy	Male Pins Plug	N	1.27 µm	50 µin	Electroless Nickel	MIL-DTL-38999 Series I	Free Hanging (In-Line)	Copper Alloy	Crimp	Military	-65 ░C	200 °C	Silver	Coupling Nut			Gold	Metal			21-1
Amphenol Aerospace Operations MS27467T21F75PC	4	Environment Resistant	Shielded	Bayonet Lock	Aviation Marine Military	Aluminum Alloy	Male Pins Plug	C	1.27 µm	50 µin	Electroless Nickel	MIL-DTL-38999 Series I	Free Hanging (In-Line)	Copper Alloy	Crimp	Military	-65 ░C	200 °C	Silver	Coupling Nut	75	21	Gold	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 297.50
		10	$ 264.93
		25	$ 242.18

Description

General part information

MS27467T21F Series

41 Position Circular Connector Plug, Male Pins Crimp
