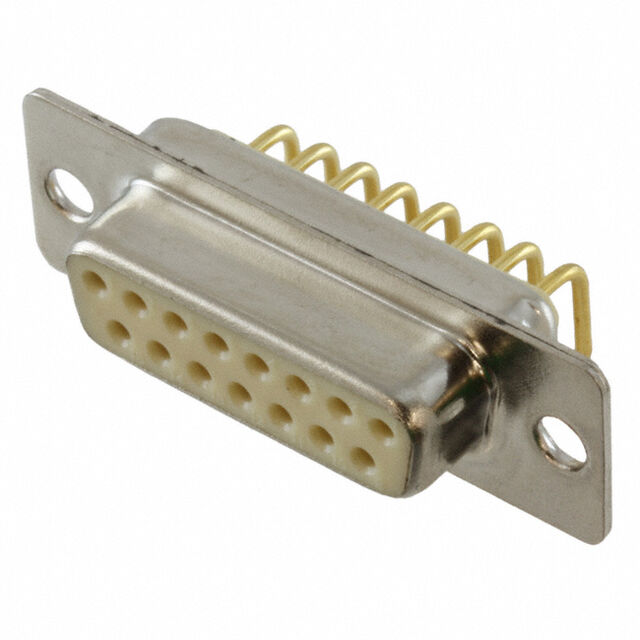

774-E15-213R001

Active

MH Connectors

15P PANEL MOUNTING 2 D-SUB / VGA CONNECTORS ROHS

Search across all available documentation for this part.

Active

MH Connectors

15P PANEL MOUNTING 2 D-SUB / VGA CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	774-E15-213R001

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

Part	Connector Style	Contact Type	Dielectric Material	Ingress Protection	Current Rating (Amps)	Flange Feature	Shell Material, Finish	Number of Positions	Material Flammability Rating	Backset Spacing	Backset Spacing	Connector Type	Number of Rows	Contact Material	Color	Mounting Type	Contact Finish Thickness	Termination	Contact Finish	Shell Size, Connector Layout	Features
MH Connectors 774-E15-213R001	D-Sub	Signal	Polyamide (PA6T) Nylon 6T	IP67 - Dust Tight Waterproof	5 A	Housing/Shell (Unthreaded)	Nickel Plated Steel	15	UL94 V-0	9.4 mm	0.37 in	Receptacle Female Sockets	2	Brass	White	Panel Mount Right Angle Through Hole	Flash	Solder	Gold	2
MH Connectors 774-E15-213R461	D-Sub	Signal	Polyamide (PA6T) Nylon 6T	IP67 - Dust Tight Waterproof	5 A	Housing/Shell (4-40)	Nickel Plated Steel	15	UL94 V-0	9.4 mm	0.37 in	Receptacle Female Sockets	2	Brass	White	Panel Mount Right Angle Through Hole	Flash	Solder	Gold	2	Board Lock Mounting Brackets
MH Connectors 774-E15-113R141	D-Sub	Signal	Polyamide (PA6T) Nylon 6T	IP67 - Dust Tight Waterproof	5 A	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	15	UL94 V-0	9.4 mm	0.37 in	Male Pins Plug	2	Brass	White	Panel Mount Right Angle Through Hole	Flash	Solder	Gold	2	Grounding Indents Mounting Brackets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
