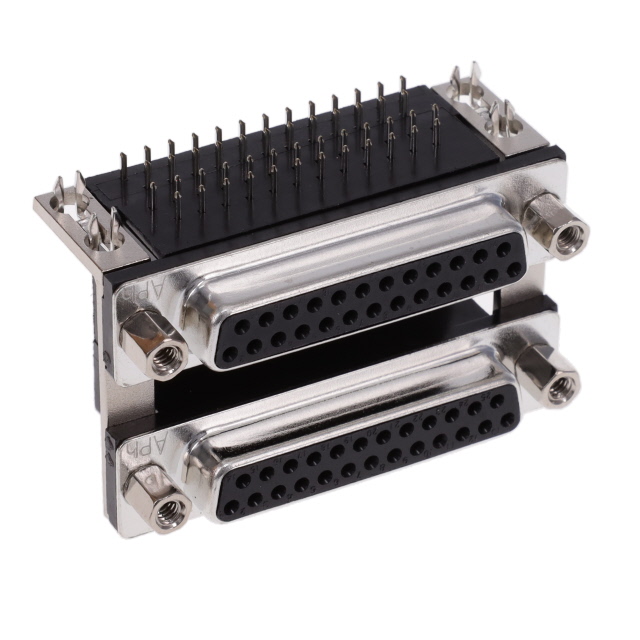

L17H2660131

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17H2660131

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17H2660131

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder
Voltage Rating	250 VDC

L17H26 Series

Part	Contact Finish	Backset Spacing	Backset Spacing	Number of Positions	Connector Style	Voltage Rating	Material Flammability Rating	Contact Type	Connector Type	Number of Rows	Mounting Type	Termination	Shell Size, Connector Layout	Contact Material	Contact Finish Thickness	Current Rating (Amps)	Dielectric Material	Flange Feature	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Features	Color	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout
Amphenol ICC (Commercial Products) L17H266023148	Gold	8.08 mm	0.318 "	25	D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Receptacle Female Sockets	2	Through Hole Right Angle	Solder	3 (DB B)	Brass	Flash	3 A	Thermoplastic Glass Filled	Female Screwlock (4-40) Mating Side	Stamped	105 ░C	-55 °C	Nickel Plated Steel	Board Lock Shielded	Black
Amphenol ICC (Commercial Products) L17H2662237	Gold	8.08 mm	0.318 "	25	D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Receptacle Female Sockets	2	Through Hole Right Angle	Solder	3 (DB B)	Brass		3 A	Thermoplastic Glass Filled	Female Screwlock (4-40) Mating Side	Stamped	105 ░C	-55 °C	Nickel Plated Steel	Board Lock Shielded	Black	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L17H2660130	Gold	8.08 mm	0.318 "	25	D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Receptacle Female Sockets	2	Through Hole Right Angle	Solder	3 (DB B)	Brass	Flash	3 A	Thermoplastic Glass Filled	Housing/Shell (4-40)	Stamped	105 ░C	-55 °C		Board Lock Shielded	Black
Amphenol ICC (Commercial Products) L17H26E2131	Gold	8.08 mm	0.318 "	25 37	D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Receptacle Female Sockets	2	Through Hole Right Angle	Solder		Brass		3 A	Thermoplastic Glass Filled	Female Screwlock (4-40) Mating Side	Stamped	105 ░C	-55 °C		Board Lock Shielded	Black	0.76 Ám	30 Áin	3 4
Amphenol ICC (Commercial Products) L17H2660131	Gold	8.08 mm	0.318 "	25	D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Receptacle Female Sockets	2	Through Hole Right Angle	Solder	3 (DB B)	Brass	Flash	3 A	Thermoplastic Glass Filled	Female Screwlock (4-40) Mating Side	Stamped	105 ░C	-55 °C		Board Lock Shielded	Black
Amphenol ICC (Commercial Products) L17H2615130HT	Gold	8.08 mm	0.318 "		D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Plug Male Pins Receptacle Female Sockets	2	Through Hole Right Angle	Solder		Brass Phosphor Bronze		3 A	Thermoplastic Glass Filled	4-40 Board Side	Stamped	125 °C	-55 °C		Board Lock Shielded				1 3
Amphenol ICC (Commercial Products) L17H2650120	Gold	8.08 mm	0.318 "	25	D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Plug Male Pins Receptacle Female Sockets	2	Through Hole Right Angle	Solder	3 (DB B)	Brass	Flash	3 A	Thermoplastic Glass Filled	Housing/Shell (4-40)	Stamped	105 ░C	-55 °C		Board Lock Shielded	Black
Amphenol ICC (Commercial Products) L17H2660120	Gold	8.08 mm	0.318 "	25	D-Sub - Stacked	250 VDC	UL94 V-0	Signal	Receptacle Female Sockets	2	Through Hole Right Angle	Solder	3 (DB B)	Brass	Flash	3 A	Thermoplastic Glass Filled	Housing/Shell (4-40)	Stamped	105 ░C	-55 °C		Board Lock Shielded	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.54
		10	$ 5.92
		25	$ 5.59
		50	$ 5.45
		100	$ 5.18
		250	$ 4.64
		450	$ 4.36
		950	$ 3.82
		2400	$ 3.63

Description

General part information

L17H26 Series

25, 25 Position D-Sub - Stacked Receptacle, Female Sockets Connector
