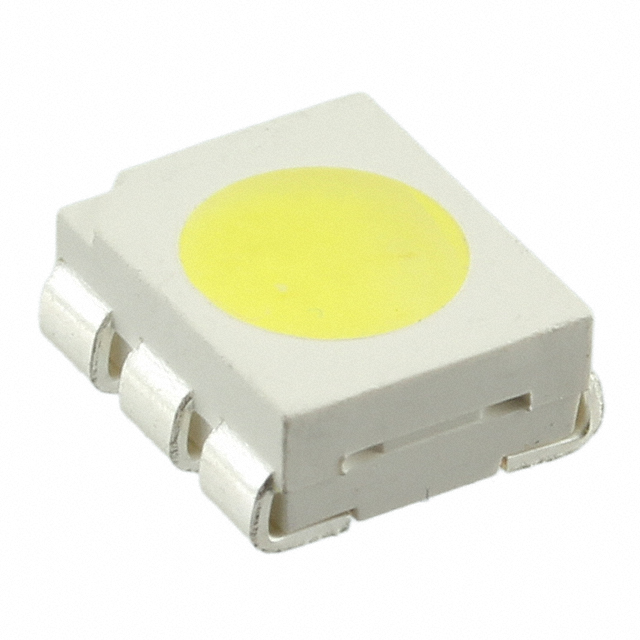

CLP6B-WKW-CB0E0153

Active

Cree LED

LED COOL WHITE DIFF 6PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLP6B-WKW-CB0E0153

Active

Cree LED

LED COOL WHITE DIFF 6PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLP6B-WKW-CB0E0153	CLP6B Series

Color	Cool, White	White, Warm, Cool
Configuration	Standard	Independent, Standard
Current - Test	50 mA	50 mA
Height (Max) [Max] [z]	2.6 mm	2.6 mm
Lens Color	Yellow	Yellow
Lens Size	-	5 mm
Lens Size	-	6 mm
Lens Size [diameter]	4 mm	4 mm
Lens Style	-	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	12550 mcd	12550 - 15700 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-SMD, J-Lead	6-SMD, J-Lead
Size / Dimension [x]	6 mm	6 mm
Size / Dimension [y]	5 mm	5 mm
Supplier Device Package	6-PLCC	6-PLCC
Voltage - Forward (Vf) (Typ)	3.8 V	3.8 V
Wavelength - Dominant	-	3200 K
Wavelength - Dominant [custom]	6800 K	6800 K

CLP6B Series

LED WARM WHITE 6PLCC SMD

Part	Supplier Device Package	Mounting Type	Current - Test	Color	Lens Style	Millicandela Rating	Lens Size [y]	Lens Size [x]	Configuration	Height (Max) [Max] [z]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lens Size [diameter]	Lens Color	Lens Transparency	Wavelength - Dominant [custom]	Wavelength - Dominant
Cree LED CLP6B-MKW-CB0F0233	6-PLCC	Surface Mount	50 mA	Warm, White	Rectangle with Flat Top	14750 mcd	5 mm	6 mm	Independent	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V
Cree LED CLP6B-MKW-CC0F0513	6-PLCC	Surface Mount	50 mA	Warm, White		15700 mcd			Independent	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V	4 mm	Yellow	Diffused
Cree LED CLP6B-MKW-CB0F0133	6-PLCC	Surface Mount	50 mA	Warm, White	Rectangle with Flat Top	14750 mcd	5 mm	6 mm	Independent	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V
Cree LED CLP6B-MKW-CC0F0233	6-PLCC	Surface Mount	50 mA	Warm, White		15700 mcd			Independent	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V	4 mm	Yellow	Diffused
Cree LED CLP6B-WKW-CB0E0153	6-PLCC	Surface Mount	50 mA	Cool, White		12550 mcd			Standard	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V	4 mm	Yellow	Diffused	6800 K
Cree LED CLP6B-MKW-CB0F0513	6-PLCC	Surface Mount	50 mA	Warm, White	Rectangle with Flat Top	14750 mcd	5 mm	6 mm	Independent	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V
Cree LED CLP6B-WKW-CC0E0453	6-PLCC	Surface Mount	50 mA	Cool, White		13500 mcd			Standard	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V	4 mm	Yellow	Diffused	6800 K
Cree LED CLP6B-WKW-CD0F0453	6-PLCC	Surface Mount	50 mA	Cool, White		14600 mcd			Standard	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V	4 mm	Yellow	Diffused	6800 K
Cree LED CLP6B-MKW-CB0E0513	6-PLCC	Surface Mount	50 mA	Warm, White		12550 mcd			Standard	2.6 mm	6-SMD, J-Lead	6 mm	5 mm	3.8 V	4 mm	Yellow	Diffused		3200 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	900	$ 0.53

Description

General part information

CLP6B Series

White, Cool 6800K LED Indication - Discrete 3.8V 6-SMD, J-Lead
