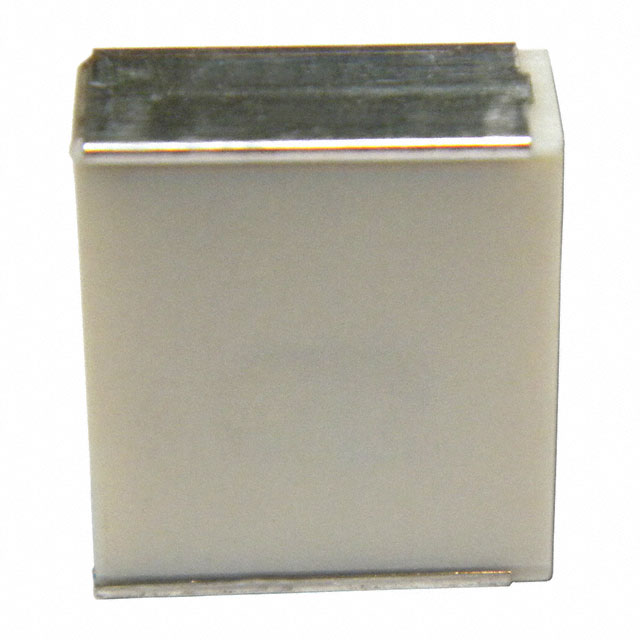

F161ZS124K630V

Active

KEMET

CAP FILM 0.12UF 10% 630VDC SMD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.12UF 10% 630VDC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	F161ZS124K630V

Applications	Automotive
Capacitance	0.12 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Height - Seated (Max) [Max] [z]	0.283 in
Height - Seated (Max) [Max] [z]	7.2 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard SMD
Ratings	AEC-Q200
Size / Dimension [x]	16.5 mm
Size / Dimension [x]	0.65 in
Size / Dimension [y]	0.591 in
Size / Dimension [y]	15 mm
Termination	Solder Pads
Tolerance	10 %
Voltage Rating - AC	250 V

Part	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Capacitance	Termination	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Voltage Rating - AC	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage Rating - DC
KEMET F161ZS475K100V	10 %	0.283 in	7.2 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	4.7 µF	Solder Pads	AEC-Q200	0.591 in	15 mm	16.5 mm	0.65 in	Surface Mount	63 V	Automotive	-55 °C	125 °C	Nonstandard SMD	100 V
KEMET F161ZS335K100V	10 %	0.283 in	7.2 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	3.3 µF	Solder Pads	AEC-Q200	0.591 in	15 mm	16.5 mm	0.65 in	Surface Mount	63 V	Automotive	-55 °C	125 °C	Nonstandard SMD	100 V
KEMET F161ZS475K063V	10 %	0.283 in	7.2 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	4.7 µF	Solder Pads	AEC-Q200	0.591 in	15 mm	16.5 mm	0.65 in	Surface Mount	40 V	Automotive	-55 °C	125 °C	Nonstandard	63 VDC
KEMET F161ZS124K630V	10 %	0.283 in	7.2 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.12 µF	Solder Pads	AEC-Q200	0.591 in	15 mm	16.5 mm	0.65 in	Surface Mount	250 V	Automotive	-55 °C	125 °C	Nonstandard SMD
KEMET F161ZS154K630V	10 %	0.283 in	7.2 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.15 ÁF	Solder Pads	AEC-Q200	0.591 in	15 mm	16.5 mm	0.65 in	Surface Mount	250 V	Automotive	-55 °C	125 °C	Nonstandard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.05
	Digi-Reel®	1	$ 4.05
	Tape & Reel (TR)	500	$ 2.27

General part information

0.12 µF Film Capacitor 250V 630V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Nonstandard SMD
