GLF76431

Active

GLF Integrated Power

4APOWER RESET PROTECTION IC

Search across all available documentation for this part.

Active

GLF Integrated Power

4APOWER RESET PROTECTION IC

Technical Specifications

Parameters and characteristics for this part

Specification	GLF76431

Current - Output (Max) [Max]	6 A
Features	Slew Rate Controlled, Load Discharge
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

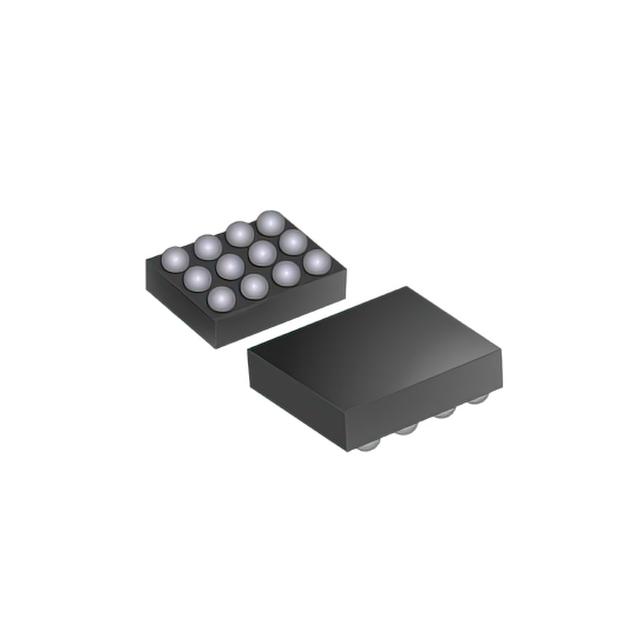

Package / Case	12-UFBGA, WLCSP
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	19 mOhm
Supplier Device Package	12-WLCSP (1.27x1.67)
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.8 V
Voltage - Supply (Vcc/Vdd)	False

4APOWER RESET PROTECTION IC

Part	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Supplier Device Package	Switch Type	Ratio - Input:Output [custom]	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Supply (Vcc/Vdd)	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]
GLF Integrated Power GLF76431	6 A	Surface Mount	1	12-WLCSP (1.27x1.67)	General Purpose	1:1	19 mOhm	85 °C	-40 °C	Load Discharge, Slew Rate Controlled		12-UFBGA, WLCSP	1.8 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 6A 12-WLCSP (1.27x1.67)
