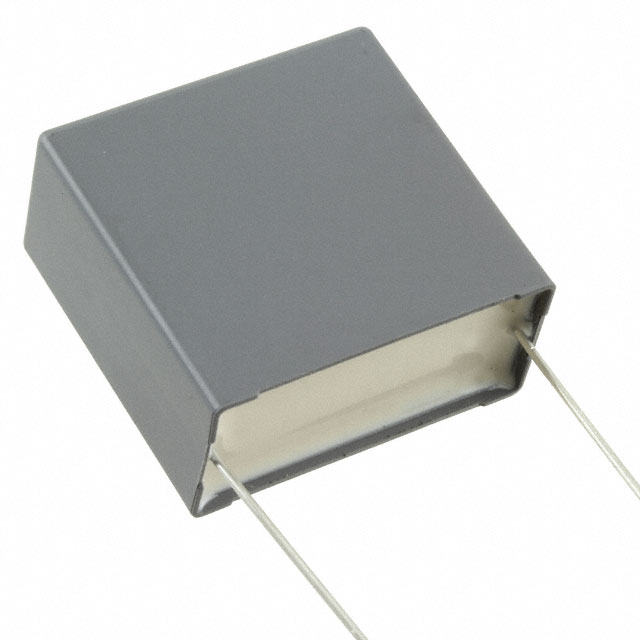

R75QR41504000J

Active

KEMET

CAP, 1.5ΜF, 1 KV, 5%, PP, RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +3

R75QR41504000J

Active

KEMET

CAP, 1.5ΜF, 1 KV, 5%, PP, RADIAL

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R75QR41504000J

Applications	Switching, DV/DT, High Frequency, High Pulse
Capacitance	1.5 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	37.1 mm
Height - Seated (Max) [Max]	1.461 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	0.866 in
Size / Dimension [y]	22 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	250 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

R75QR Series

Part	Package / Case	Capacitance	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Voltage Rating - DC	Lead Spacing	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Ratings	Size / Dimension [y]
KEMET R75QR41504000J	Radial	1.5 µF	DV/DT High Frequency High Pulse Switching	5 %	105 ░C	-55 °C	1 kVDC	1 kV	27.5 mm	1.083 in	250 V	37.1 mm	1.461 in	Metallized Polypropylene (PP)	Through Hole	0.866 in	32 mm	22 mm	1.26 in	PC Pins
KEMET R75QR333050H0J	Radial	0.33 µF	Automotive High Frequency Switching High Pulse DV/DT	5 %	125 °C	-55 °C	1 kVDC	1 kV	27.5 mm	1.083 in	250 V			Metallized Polypropylene (PP)	Through Hole	0.512 in	32 mm		1.26 in	PC Pins	0.87 in	22.1 mm	9.6 mOhms	AEC-Q200	13 mm
KEMET R75QR368050H0J	Radial	680 nF	Automotive High Frequency Switching High Pulse DV/DT	5 %	125 °C	-55 °C	1 kVDC	1 kV	27.5 mm	1.083 in	250 V			Metallized Polypropylene (PP)	Through Hole	0.709 "	32 mm	18 mm	1.26 in	PC Pins			9.4 mOhms	AEC-Q200
KEMET R75QR415050H0J	Radial	1.5 µF	Automotive High Frequency Switching High Pulse DV/DT	5 %	125 °C	-55 °C	1 kVDC	1 kV	27.5 mm	1.083 in	250 V	37.1 mm	1.461 in	Metallized Polypropylene (PP)	Through Hole	0.866 in	32 mm	22 mm	1.26 in	PC Pins			10.6 mOhms	AEC-Q200
KEMET R75QR3470AA10J	Radial	0.47 µF	DV/DT High Frequency High Pulse Switching	5 %	105 ░C	-55 °C	1 kVDC	1 kV	27.5 mm	1.083 in	250 V			Metallized Polypropylene (PP)	Through Hole	0.512 in	32 mm		1.26 in	PC Pins	0.988 "	25.1 mm	8 mOhms		13 mm
KEMET R75QR339050L0J	Radial	0.39 µF	DV/DT High Frequency High Pulse Switching	5 %	105 ░C	-55 °C	1 kVDC	1 kV	27.5 mm	1.083 in	250 V	15.1 mm	0.594 in	Metallized Polypropylene (PP)	Through Hole	0.945 in	32 mm	24 mm	1.26 in	PC Pins			10.2 mOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.96
		10	$ 4.38
		40	$ 3.75
		112	$ 3.38
		448	$ 2.99
		1008	$ 2.81
		2464	$ 2.64
Newark	Each	1	$ 5.05
		10	$ 3.69
		25	$ 3.56
		50	$ 3.41
		100	$ 3.16
		500	$ 2.90
		1000	$ 2.75
		2500	$ 2.59

Description

General part information

R75QR Series

1.5 µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial
